Ideal for companies seeking efficient hygiene in industrial environments, the SC-05 offers flexibility and modularity, perfectly adapting to the demands of your sector.
SC-05 Presentation

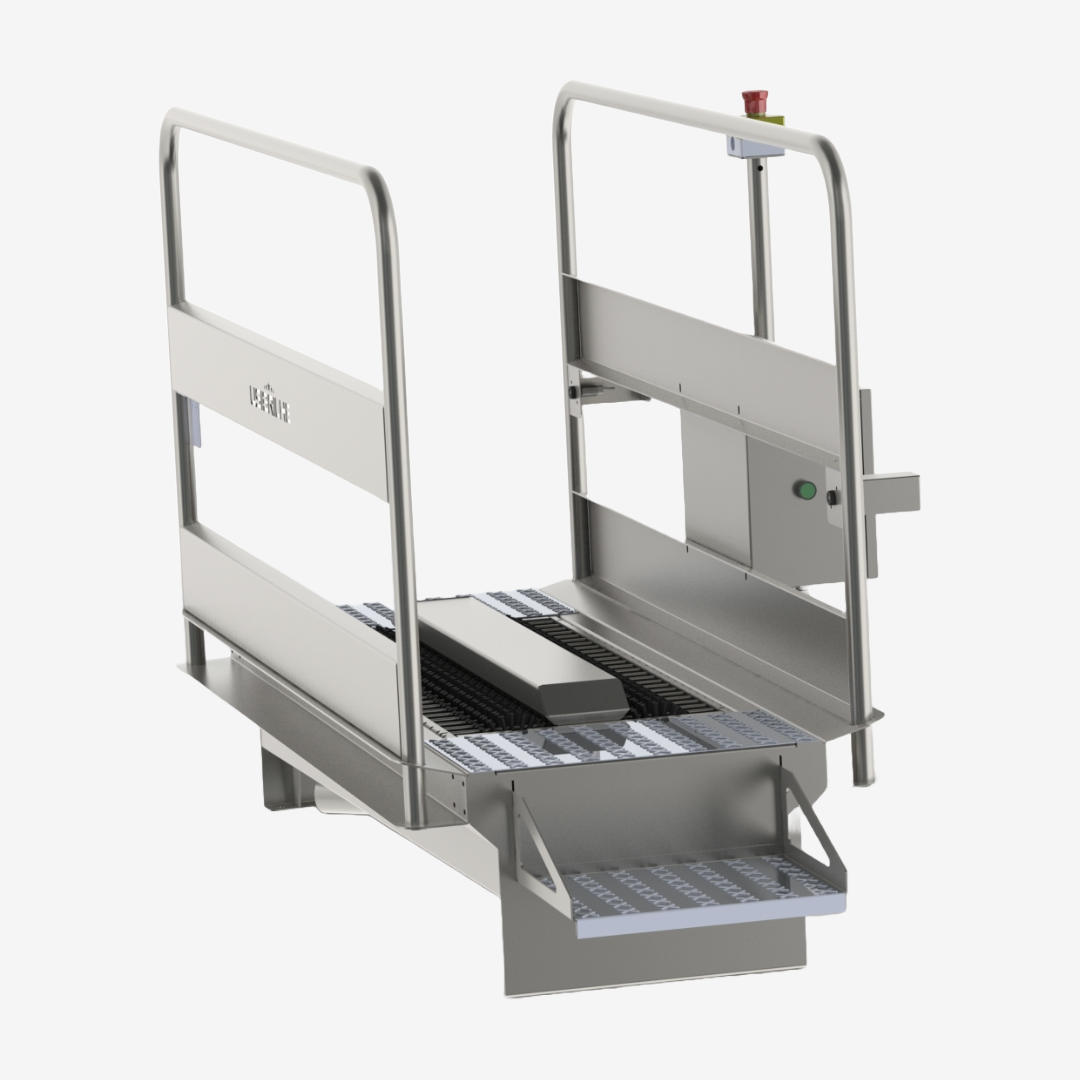

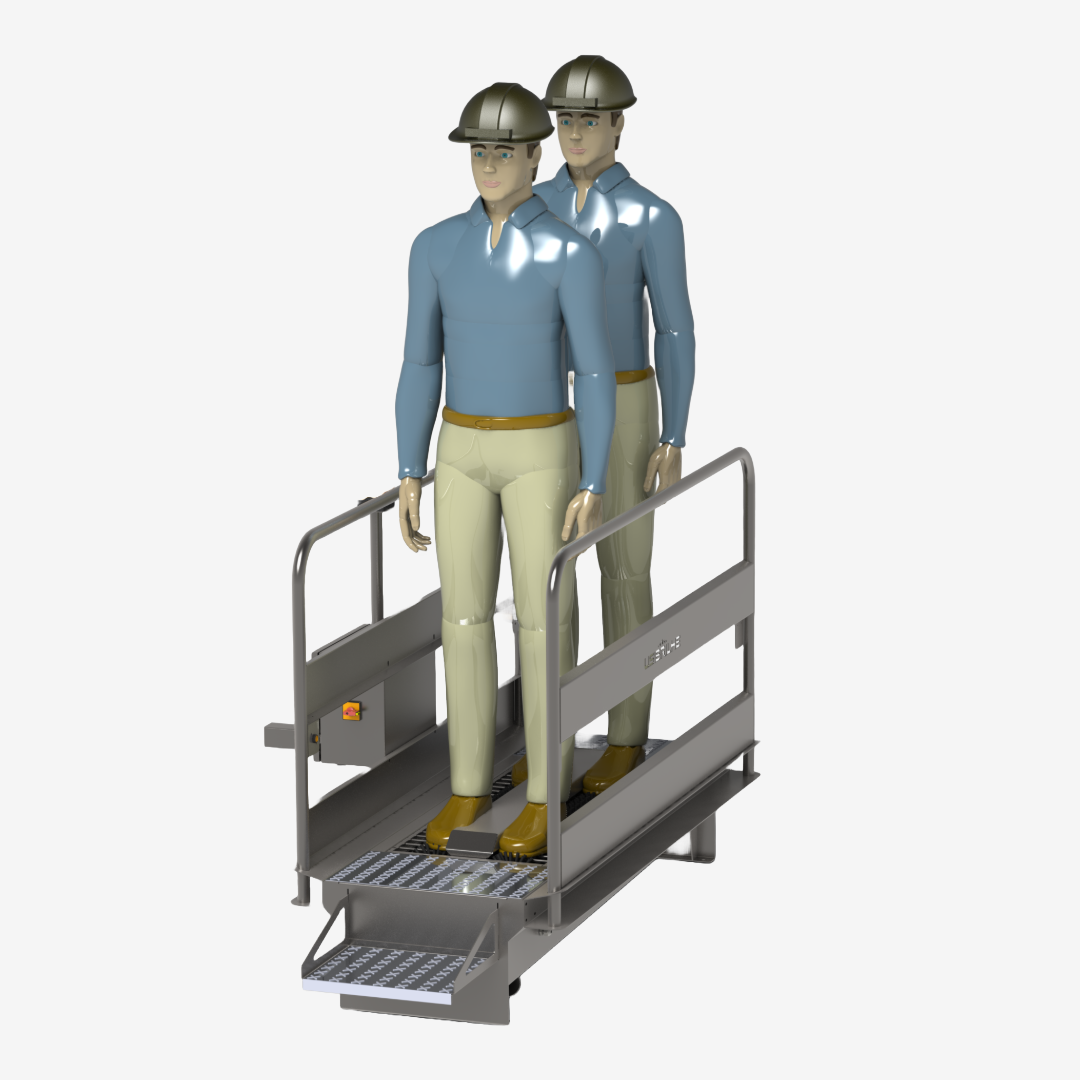

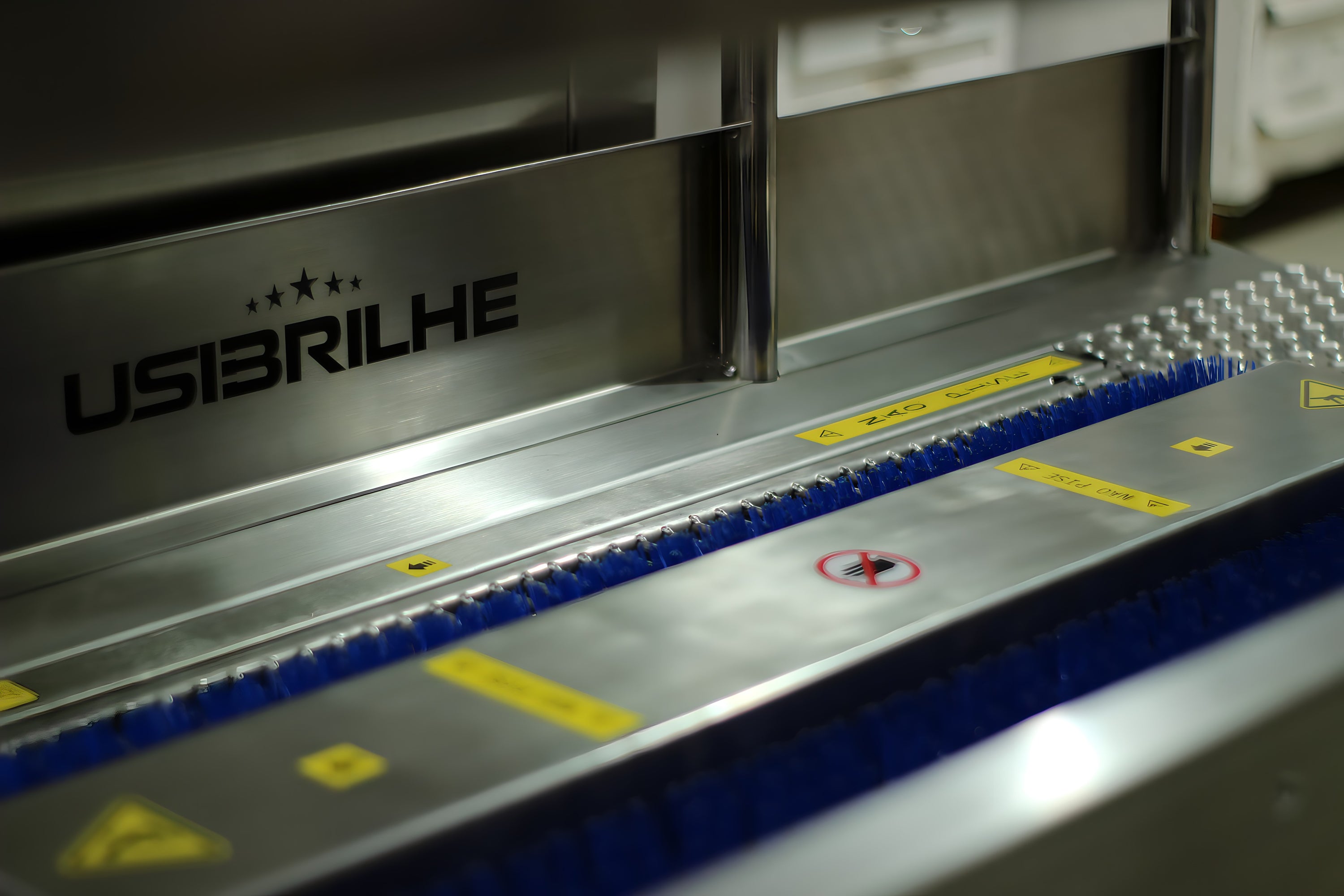

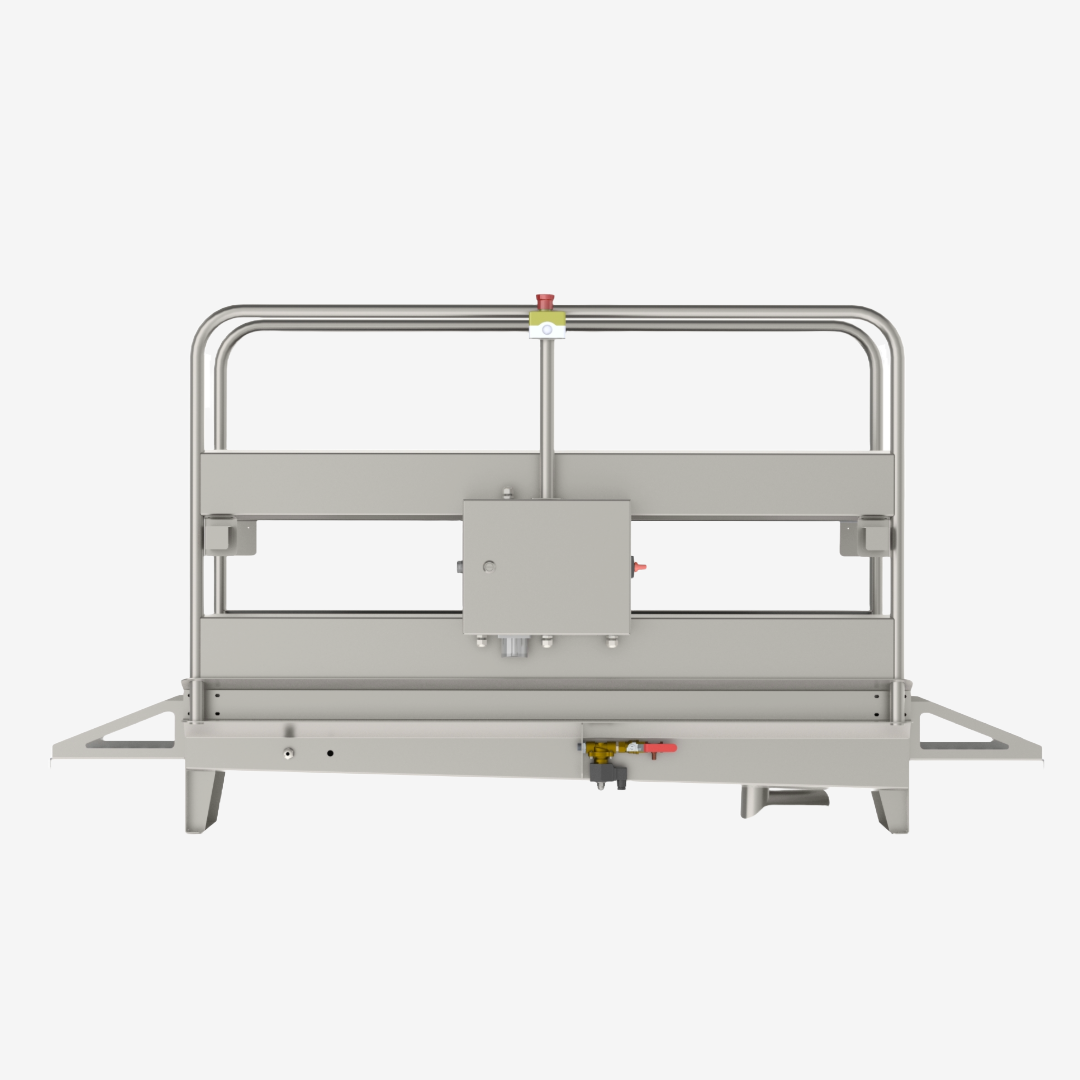

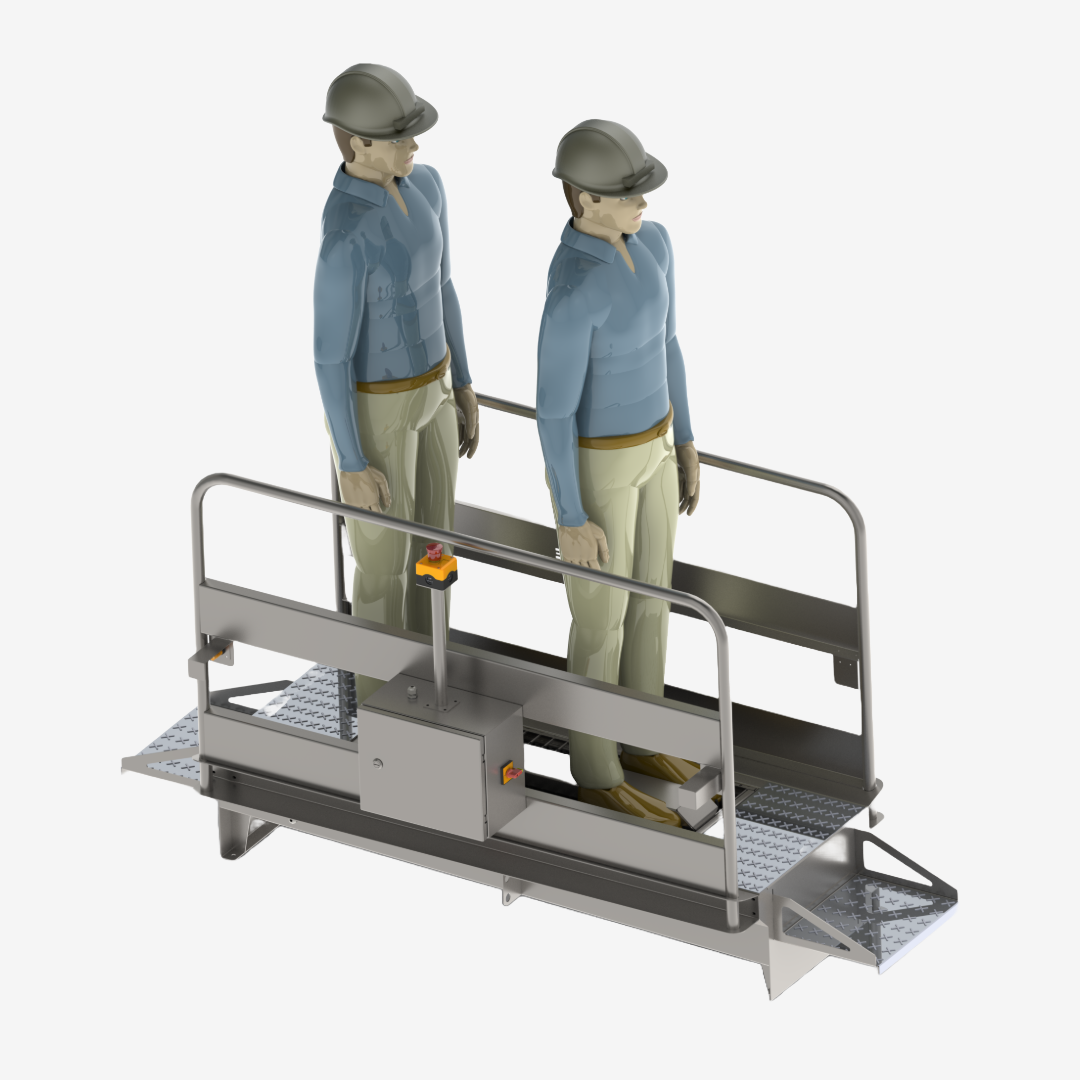

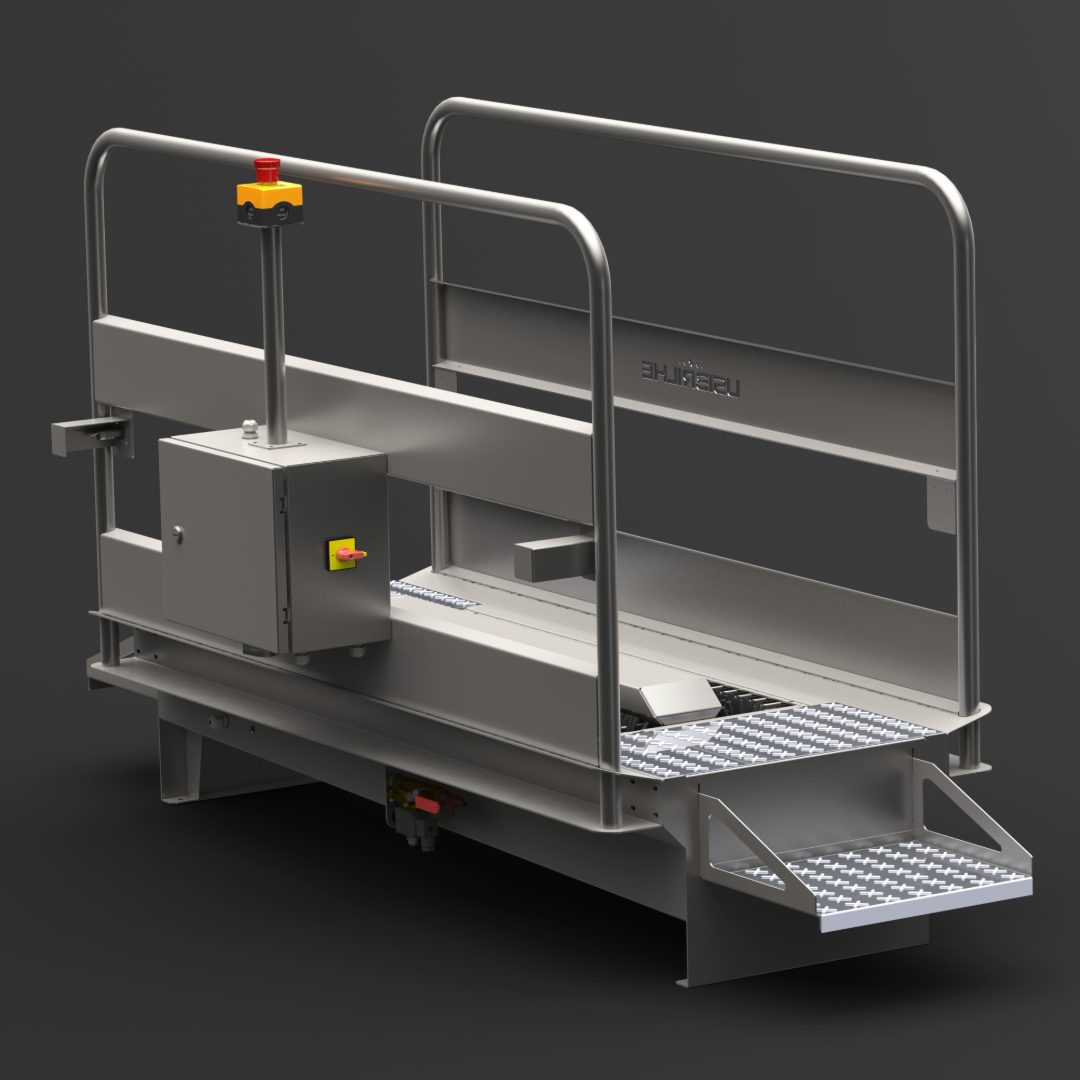

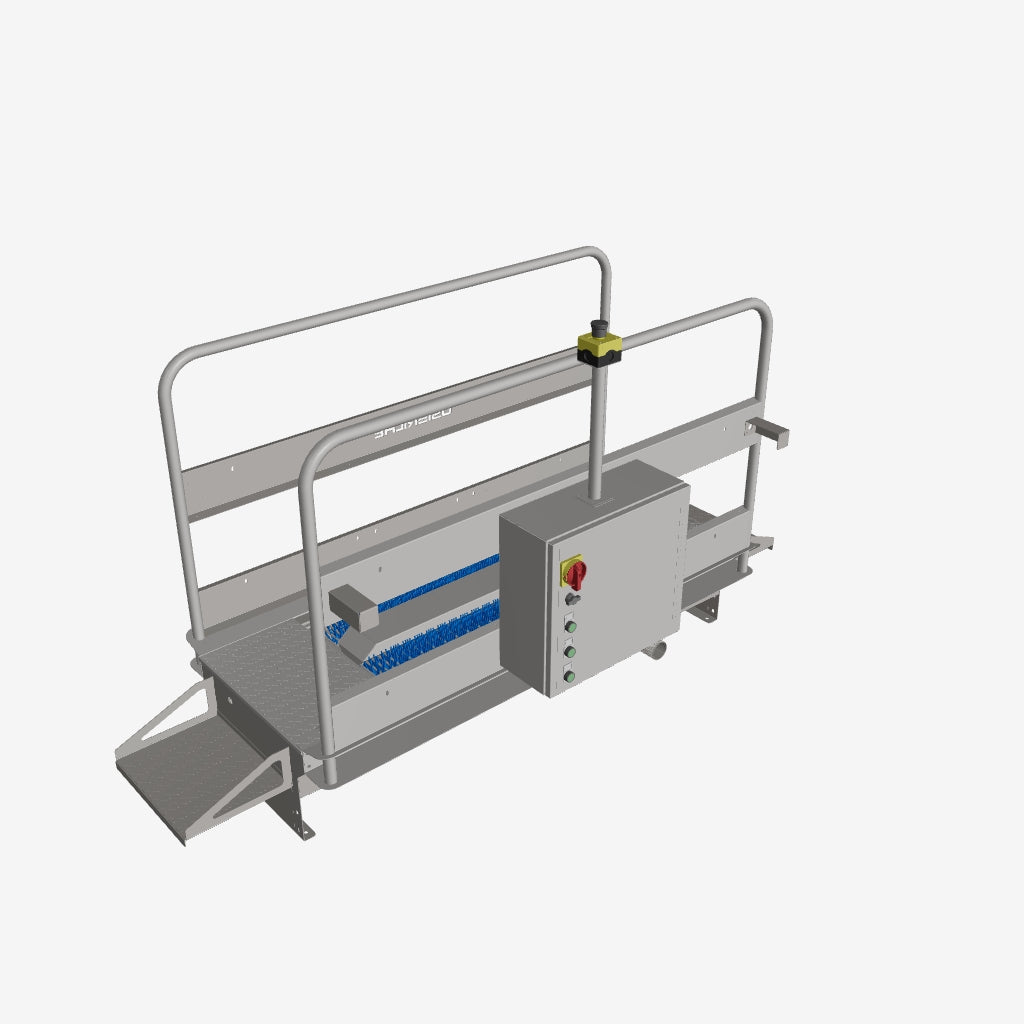

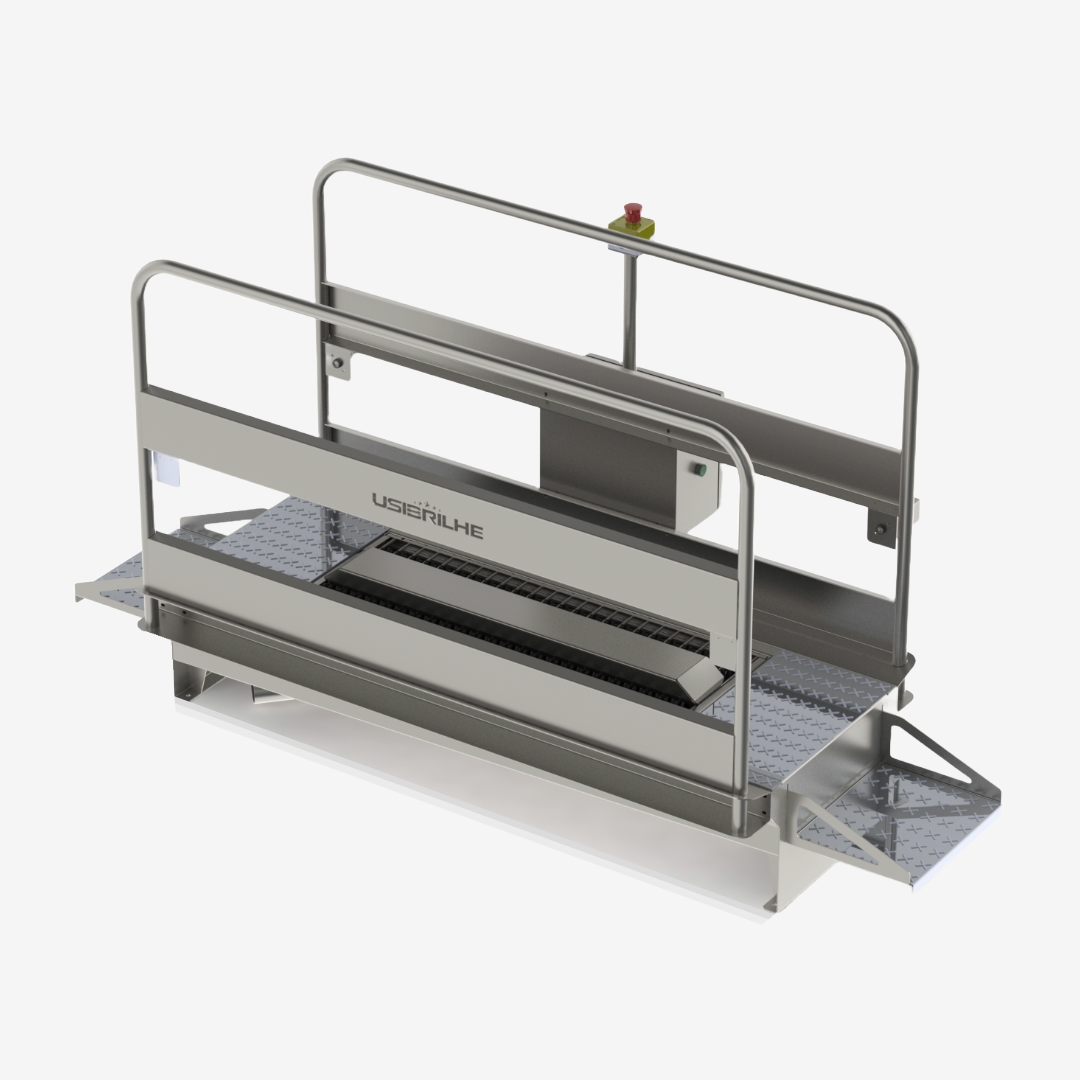

The SC-05 is a high-flow walkway boot washer built in stainless steel 304. Designed for up to 500 pairs/h, it removes heavy mud, oil, and bacteria in a continuous production line — all with wet brushing and sanitizing spray.
Operation

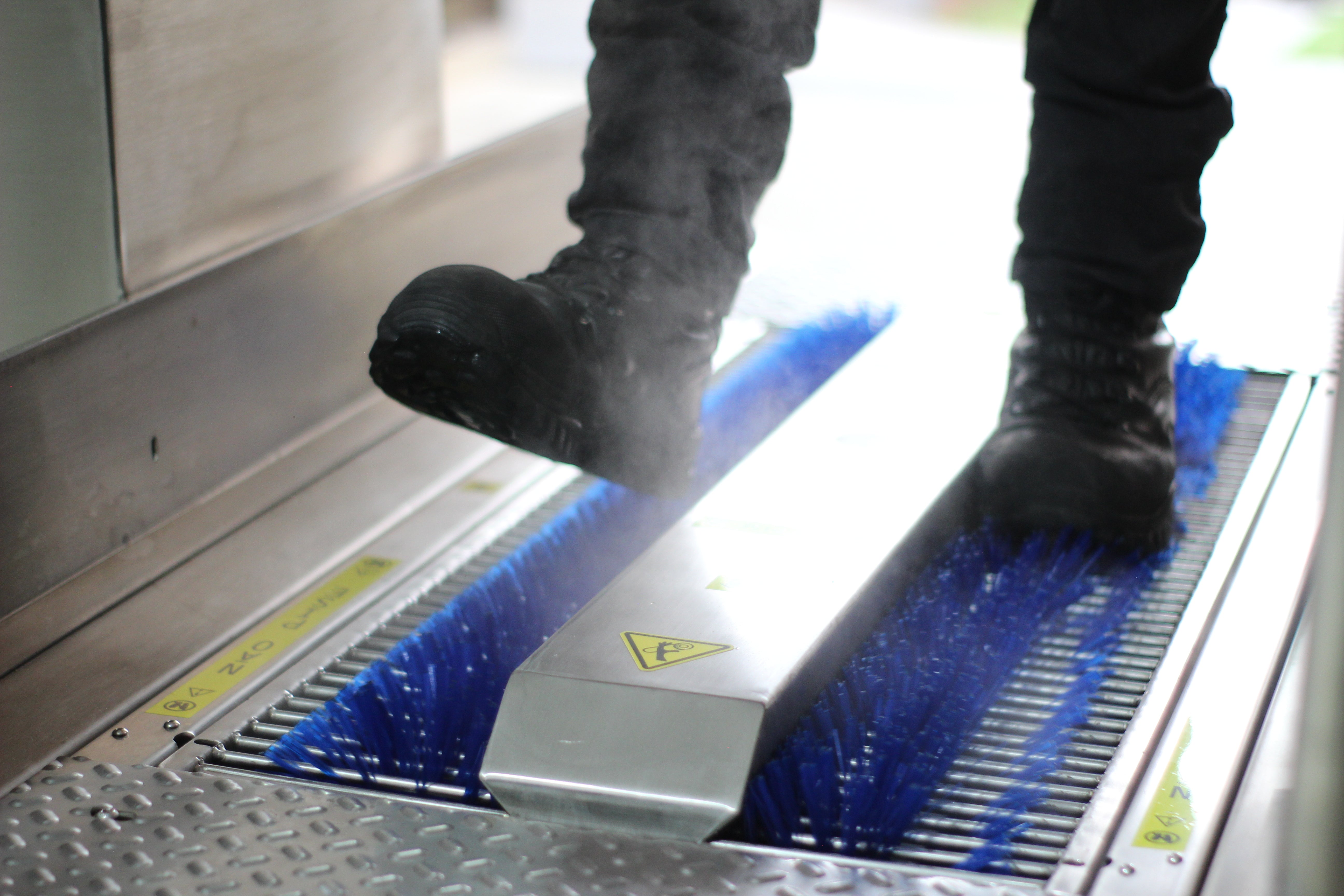

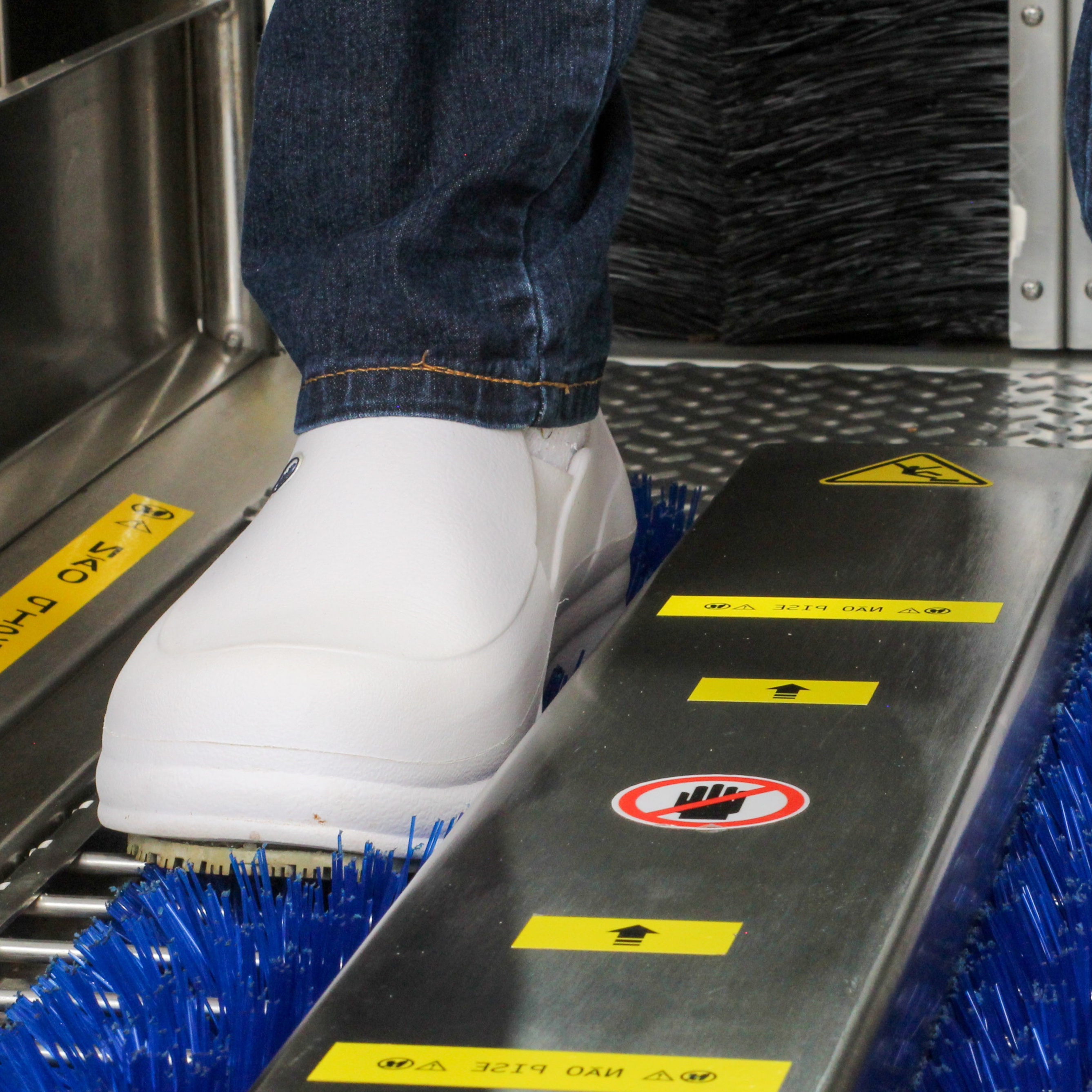

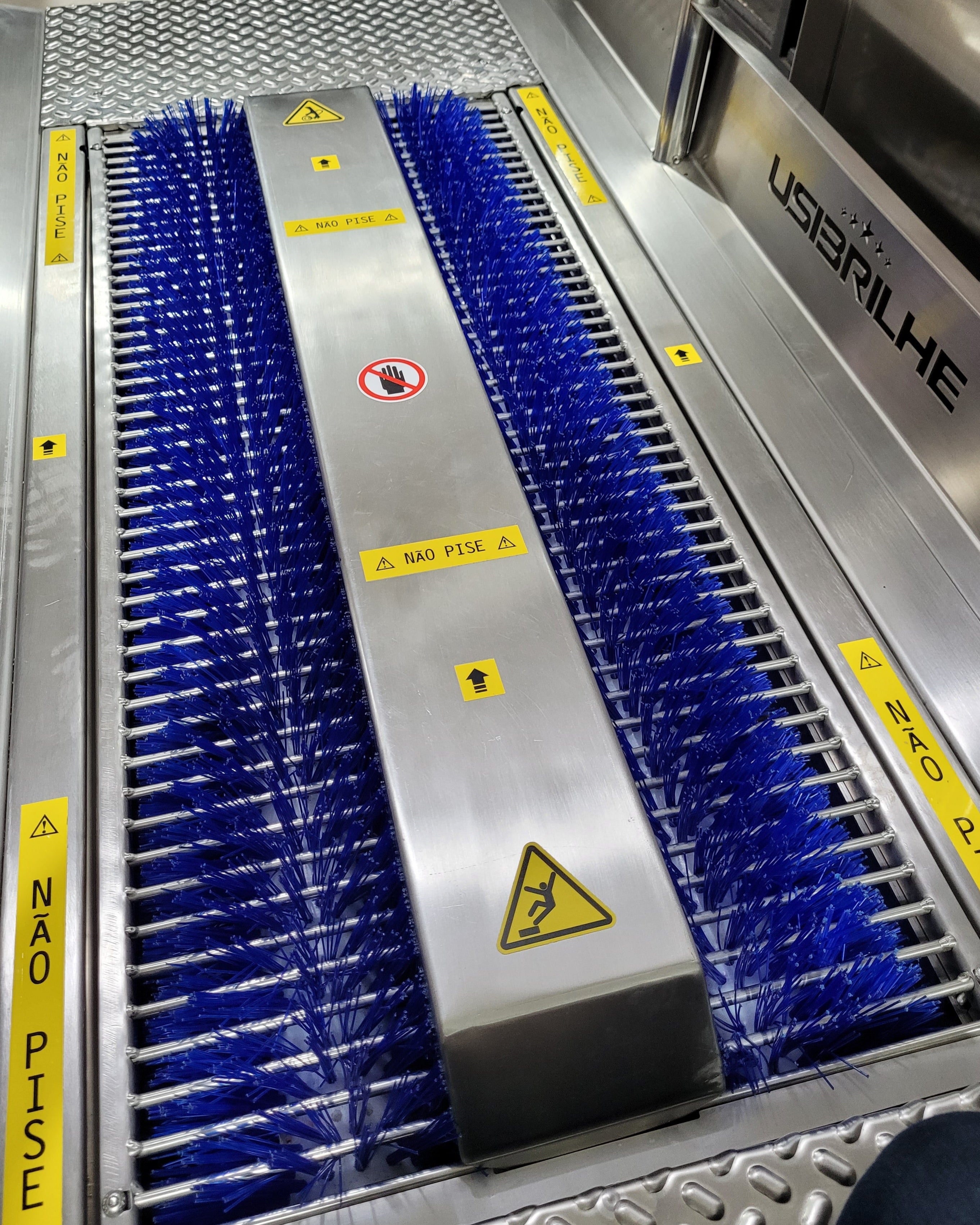

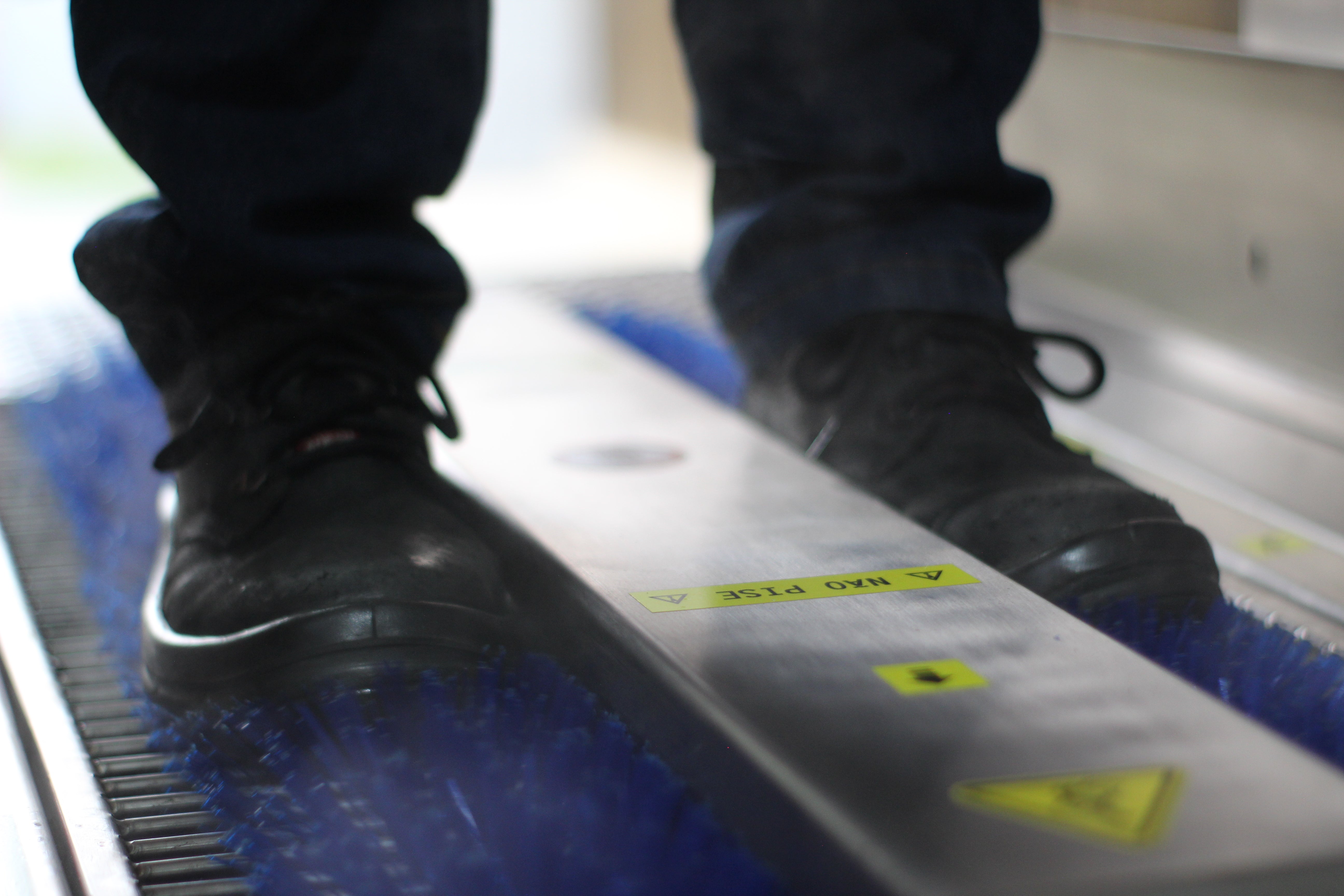

Presence sensors activate rotary brushes and misting. As the user crosses the walkway, soles, sides, and tips are washed; at the end, the system shuts off automatically, saving water and energy.
Customizable Sanitization
• Intensive brushing – heavy dirt (oil, grease).
• Sanitizing misting – eliminates microorganisms without abrasion.
• Optional self-rinse – keeps brushes clean for 24 h use.
Robust Stainless Steel Construction
Full stainless steel 304 for corrosion resistance and easy cleaning — complies with HACCP, GMP, and NR-12 standard.
High Capacity and Efficiency
Designed for high traffic: smart sensors activate only when passage occurs, maintaining continuous flow without queues.
Customization
• Scalable modules according to layout.
• Integration with access control RFID or turnstile.
• Front or side drawers for waste collection.
Advanced Safety
Emergency stops, safety sensors, and sanitary design that avoids contamination points.
Easy Maintenance
• Quick-change brushes without tools.
• WEG gearmotors with high durability.
• Easy access to components for inspections.
Typical Applications
Food industry, pharmaceutical, and plants with heavy dirt requiring continuous wet sanitization.
Benefits for the Company
• Strict sanitary compliance.
• Continuous flow without compromising cleanliness.
• Reduced water and downtime costs.
• Reinforces hygiene and safety image.
Conclusion
The SC-05 combines continuous passage, high flow, and wet sanitization in a single robust solution. Request a quote and discover how to raise your process hygiene standard.
POWER SUPPLY
- Voltage: 220V
- Frequency: 50/60Hz
- Power: 2900W
MOTORS AND CONTROL
- Motors: 2 three-phase gear motors
- Motor Power: 0.75HP / 0.55W
- Number of Poles: 4 poles
- Speed Control: Speed variation via frequency inverter
HYGIENIZATION SYSTEM

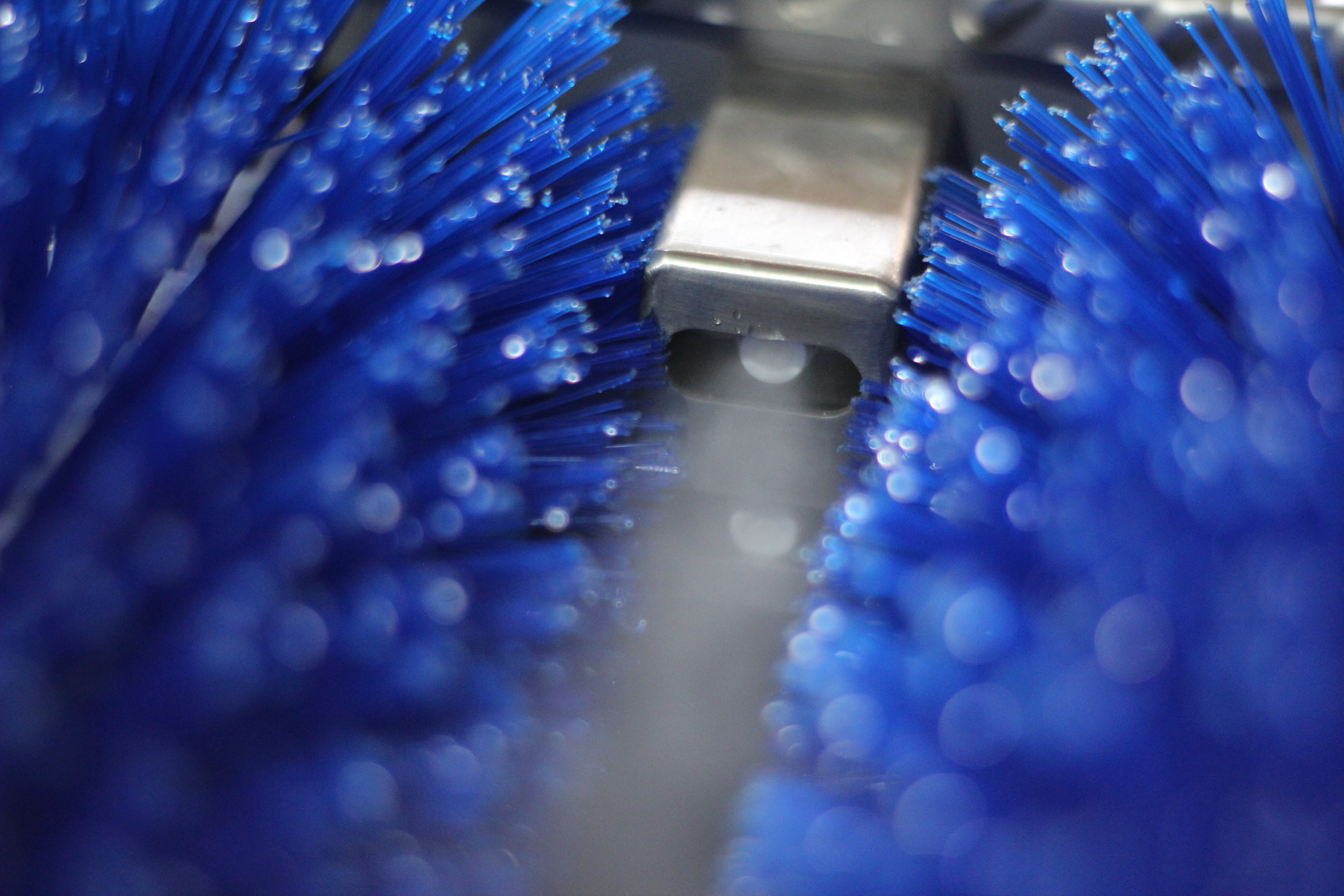

- Method: Sole brushing and spraying of sanitizers (nebulization or water)
- Sanitizer Consumption: 32 ml/min
- Brush Type: Polyamide bristles, solid machined base
- Average Hygiene Time per Person: 6 seconds (varies according to dirt level)

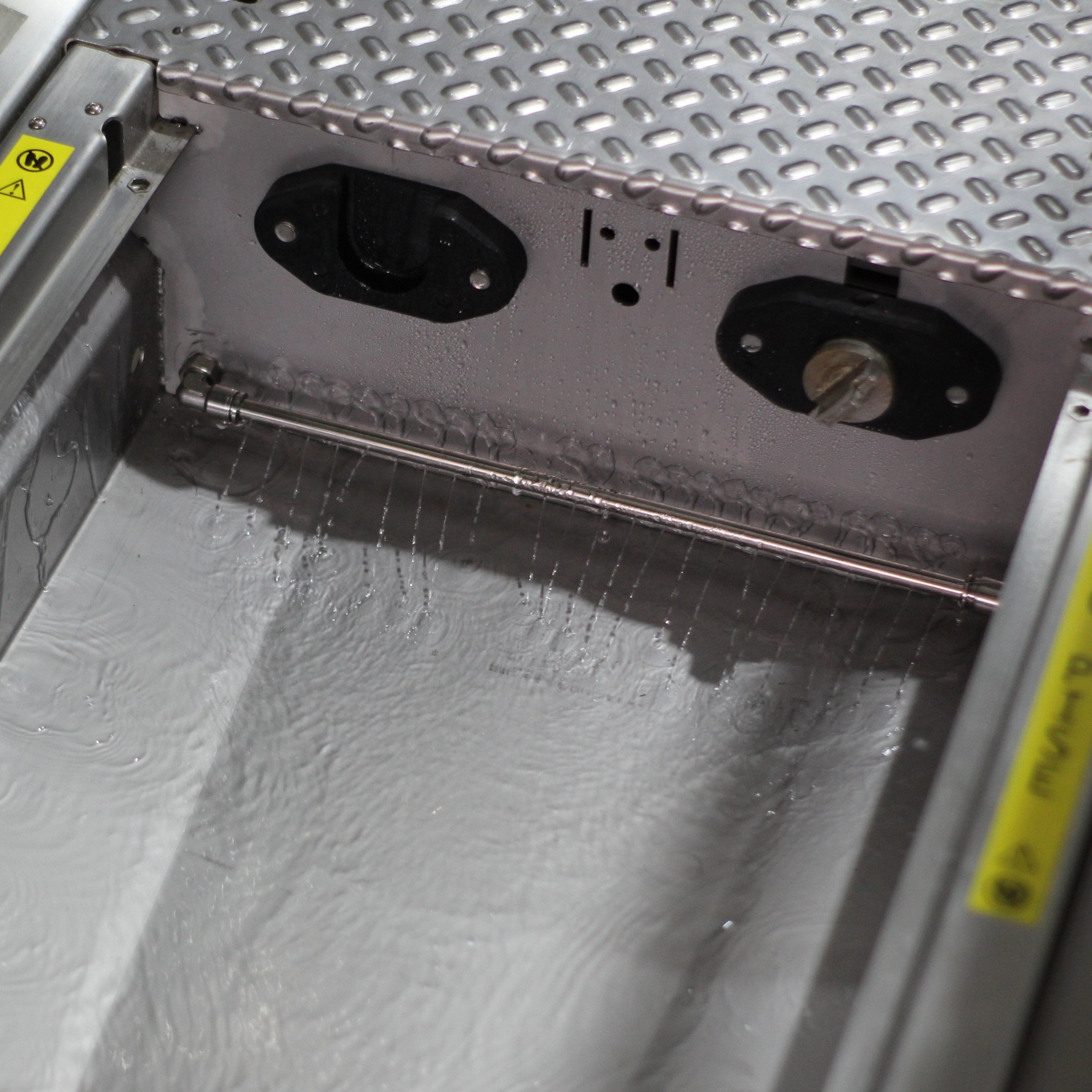

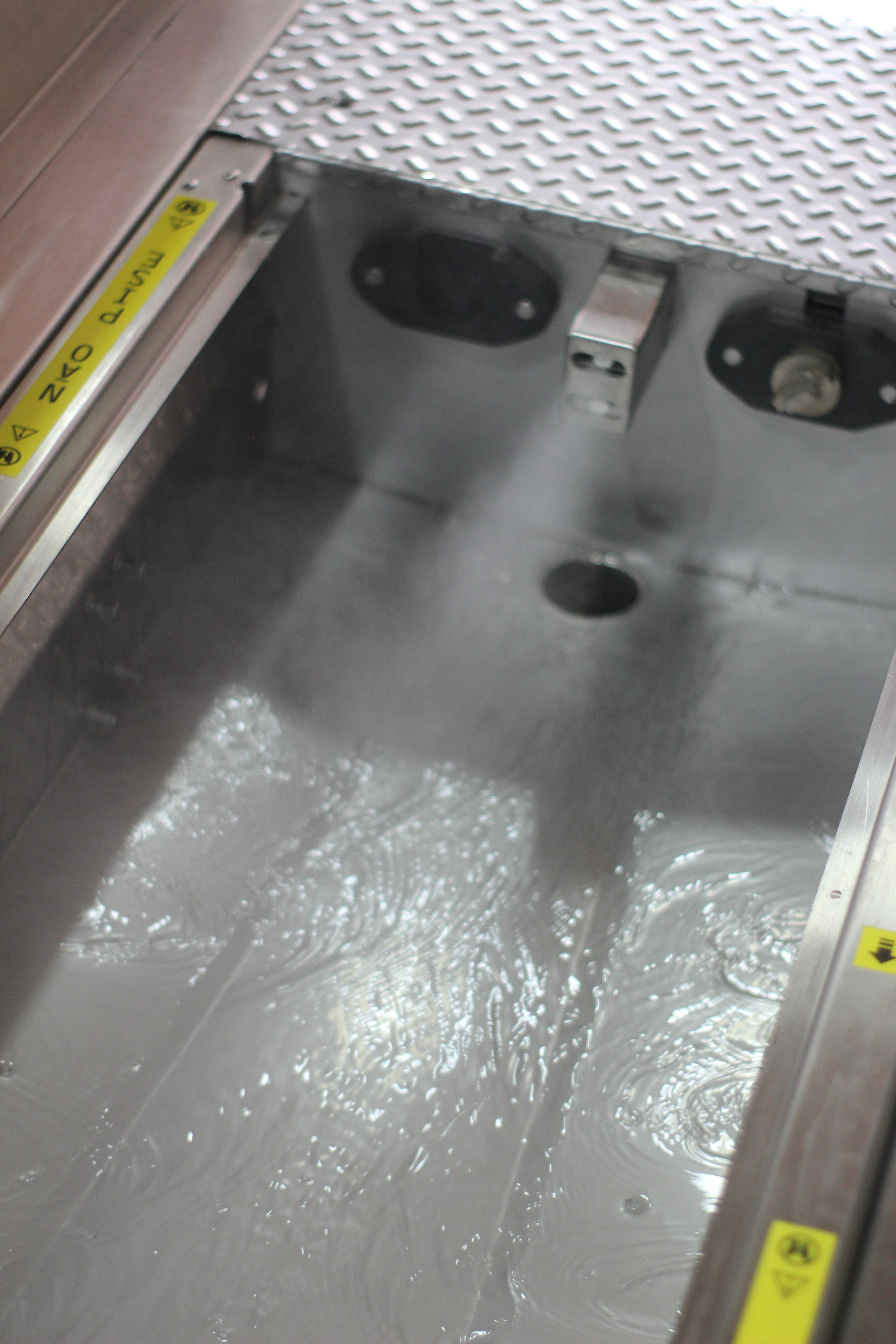

AUTO-RINSING SYSTEM (OPTIONAL)
- Activation Mode: Automatic or manual
- Water Drainage: 2 ½ inch tube
- Compatibility: Not available for drawer versions

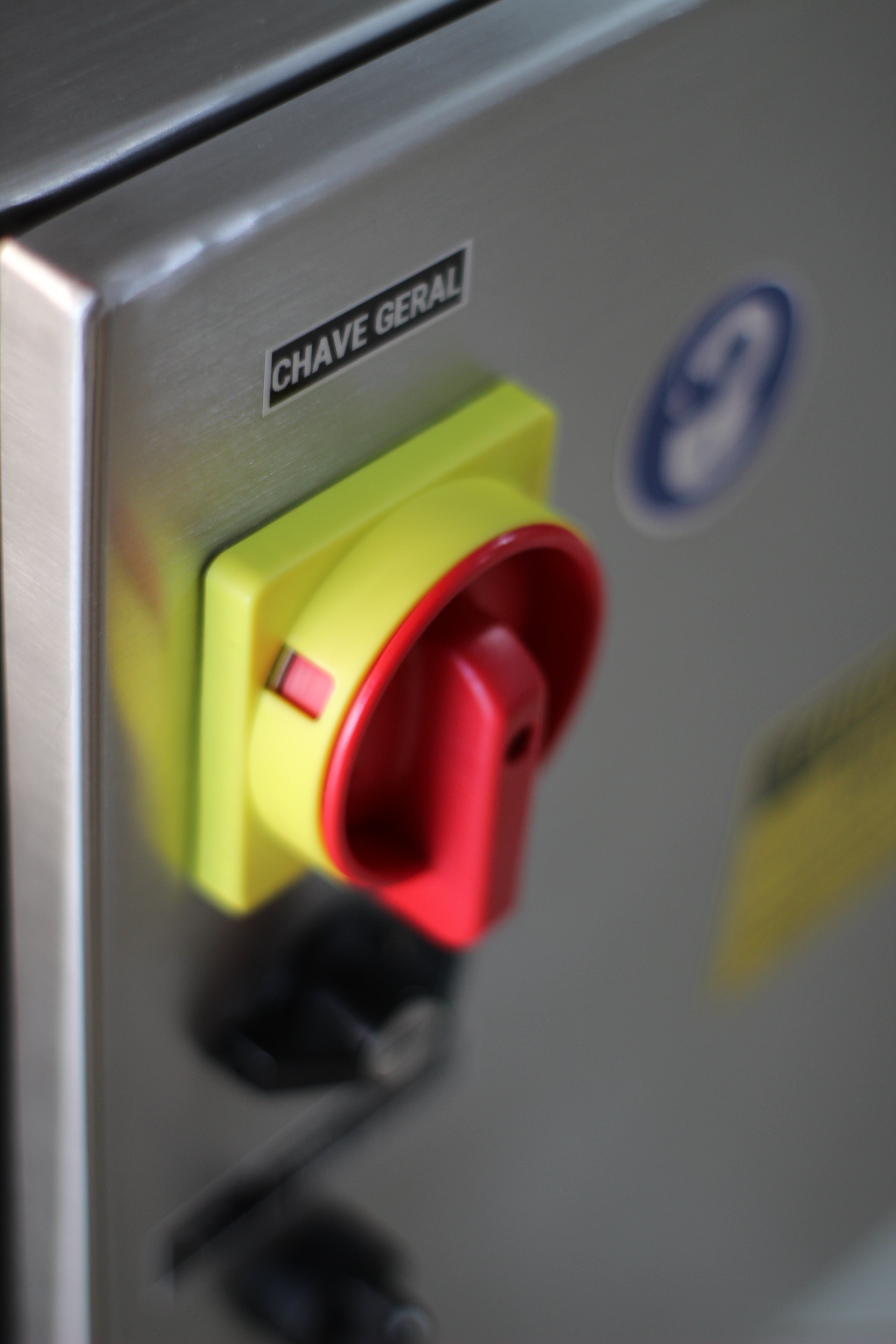

CONTROL PANELS
- Electrical Panel: Present in all versions
- Hydraulic Panel: Optional, available only in certain configurations

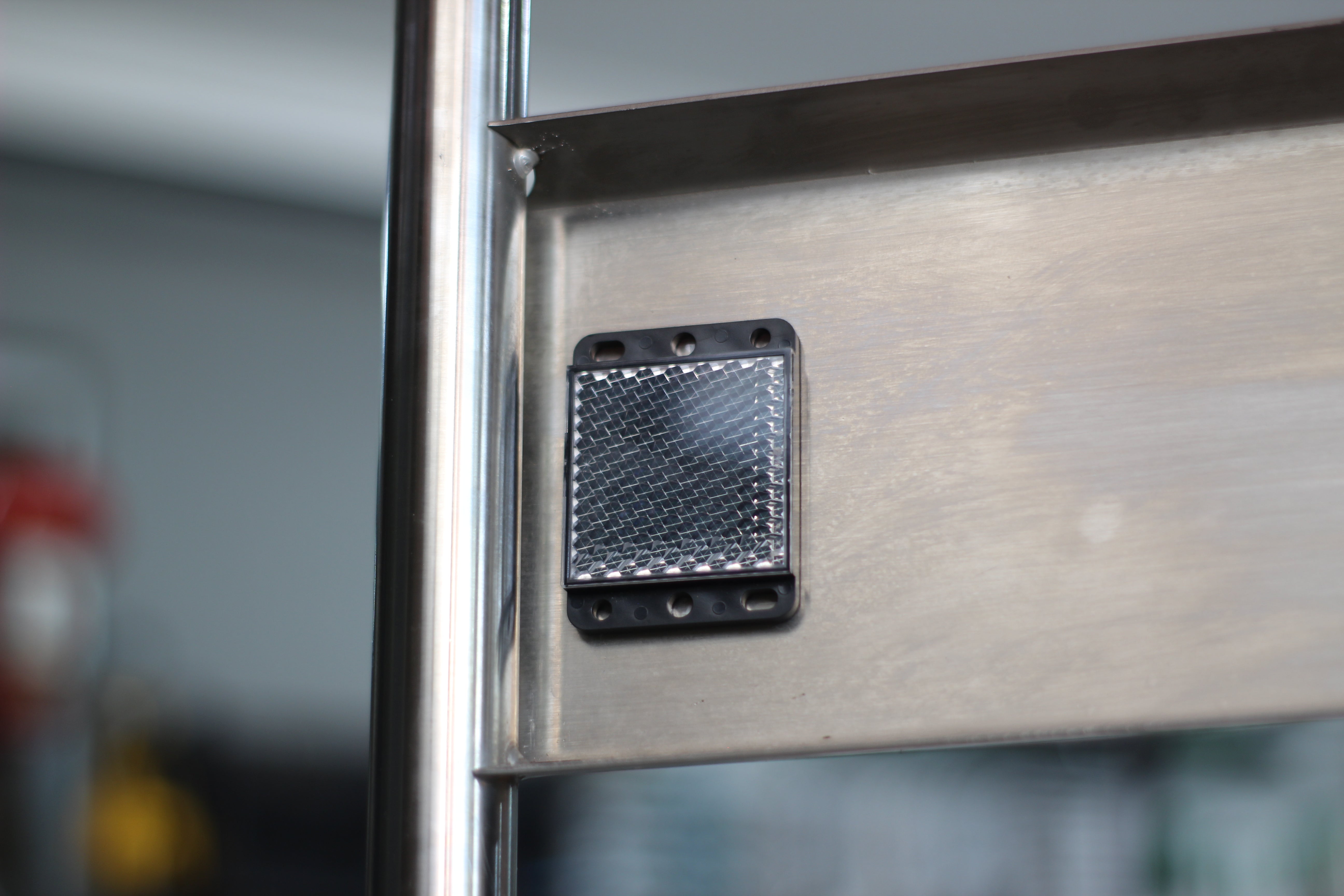

SENSORS AND AUTOMATION
- Activation: Automatic via presence sensor
- Control: Via digital signal, extra-low voltage
- Timer: Adjustable for customization of operation time
CONNECTIVITY AND INTEGRATION
- Integration: Possibility of integration with access control systems (BS-02)
- Monitoring: Ability to monitor employee flow and sanitization
DIMENSIONS AND WEIGHT
- Equipment Weight: 220kg
- Dimensions: As per technical sheet

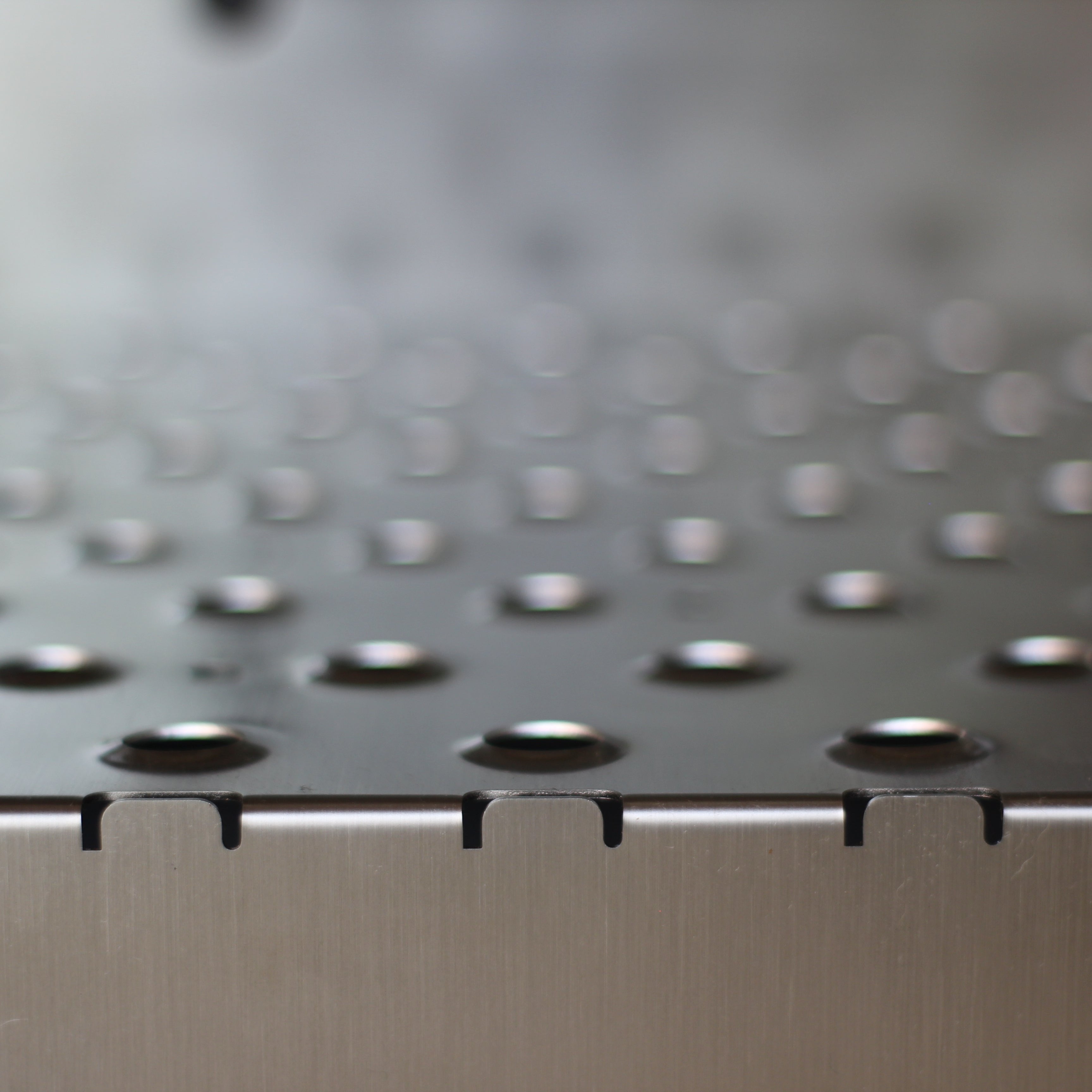

STRUCTURE AND CONSTRUCTION
- Material: Stainless Steel AISI 304
- Finish: Welded seams for easy cleaning and corrosion resistance

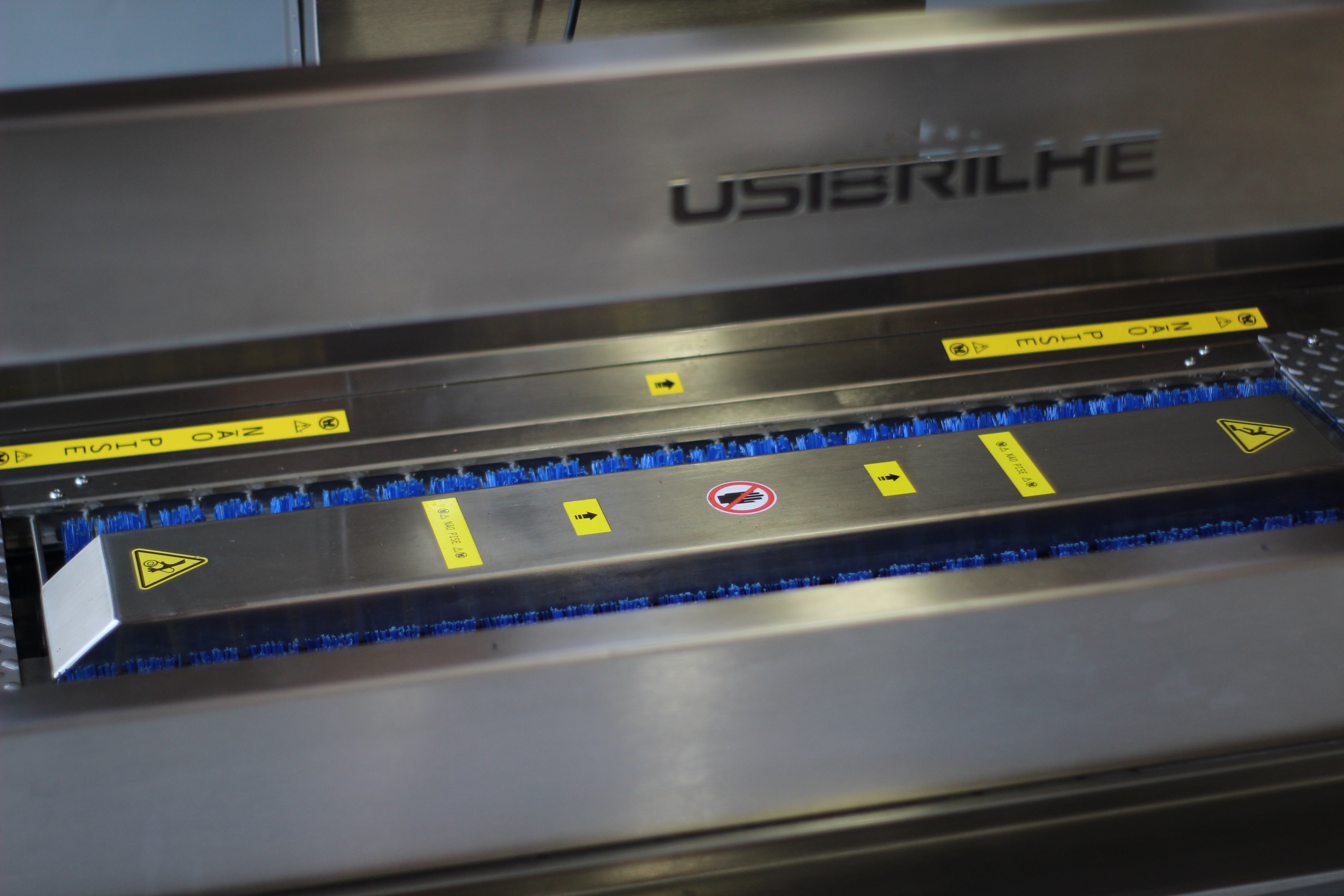

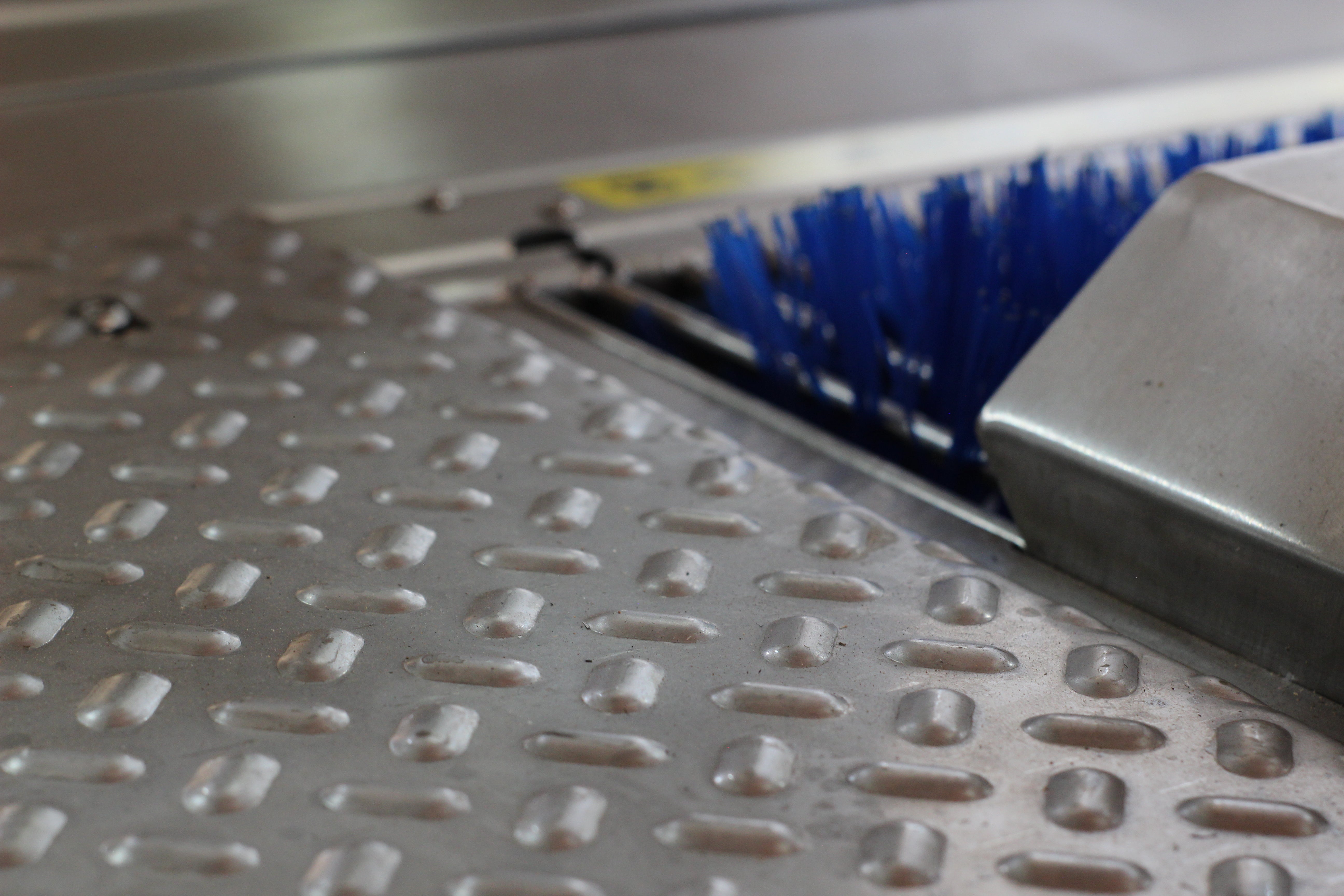

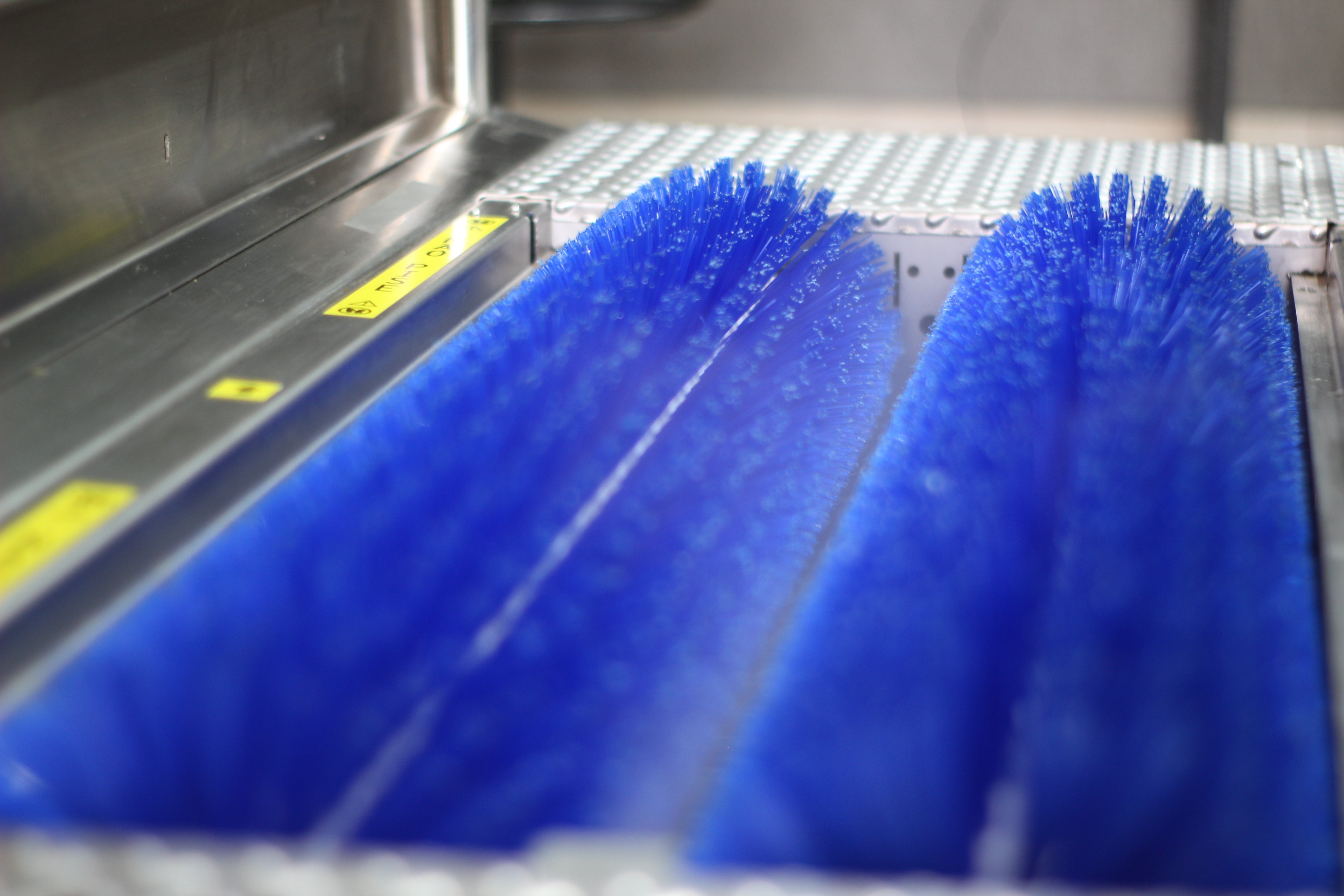

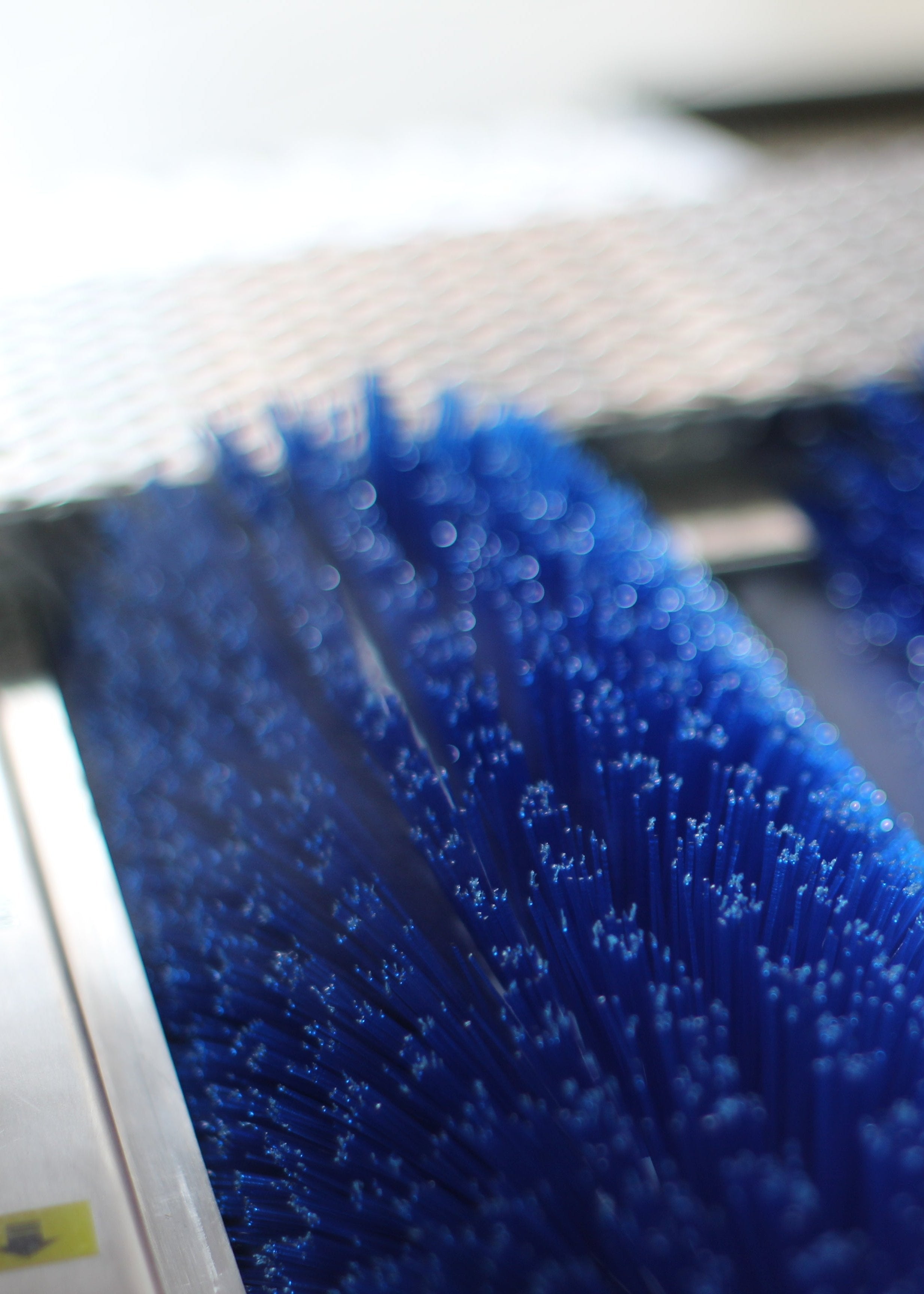

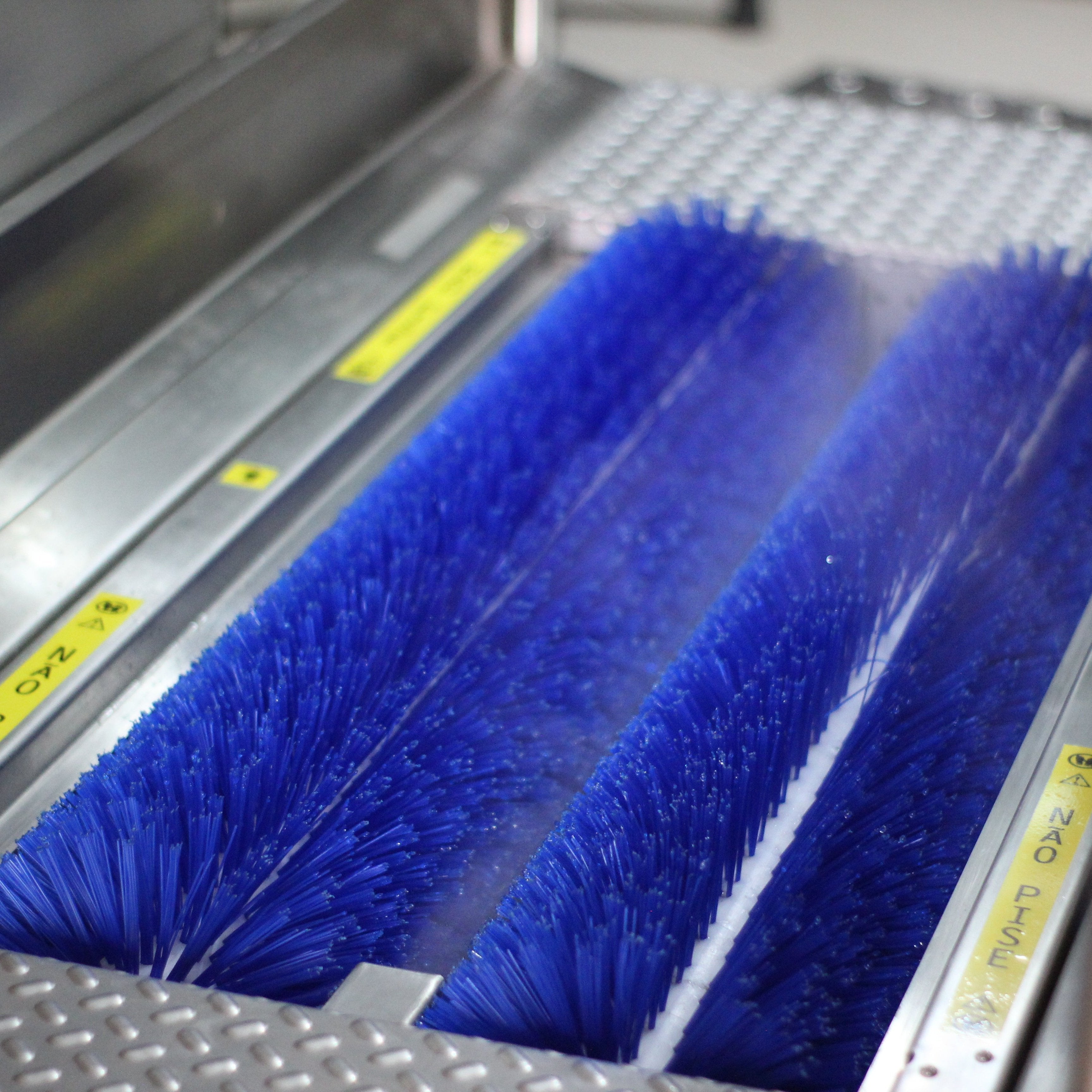

BRUSHES
- Bristle Material: Polyamide
- Replacement System: Quick replacement without tools
WASTE SYSTEMS
- Waste Drawers: (Not specified)

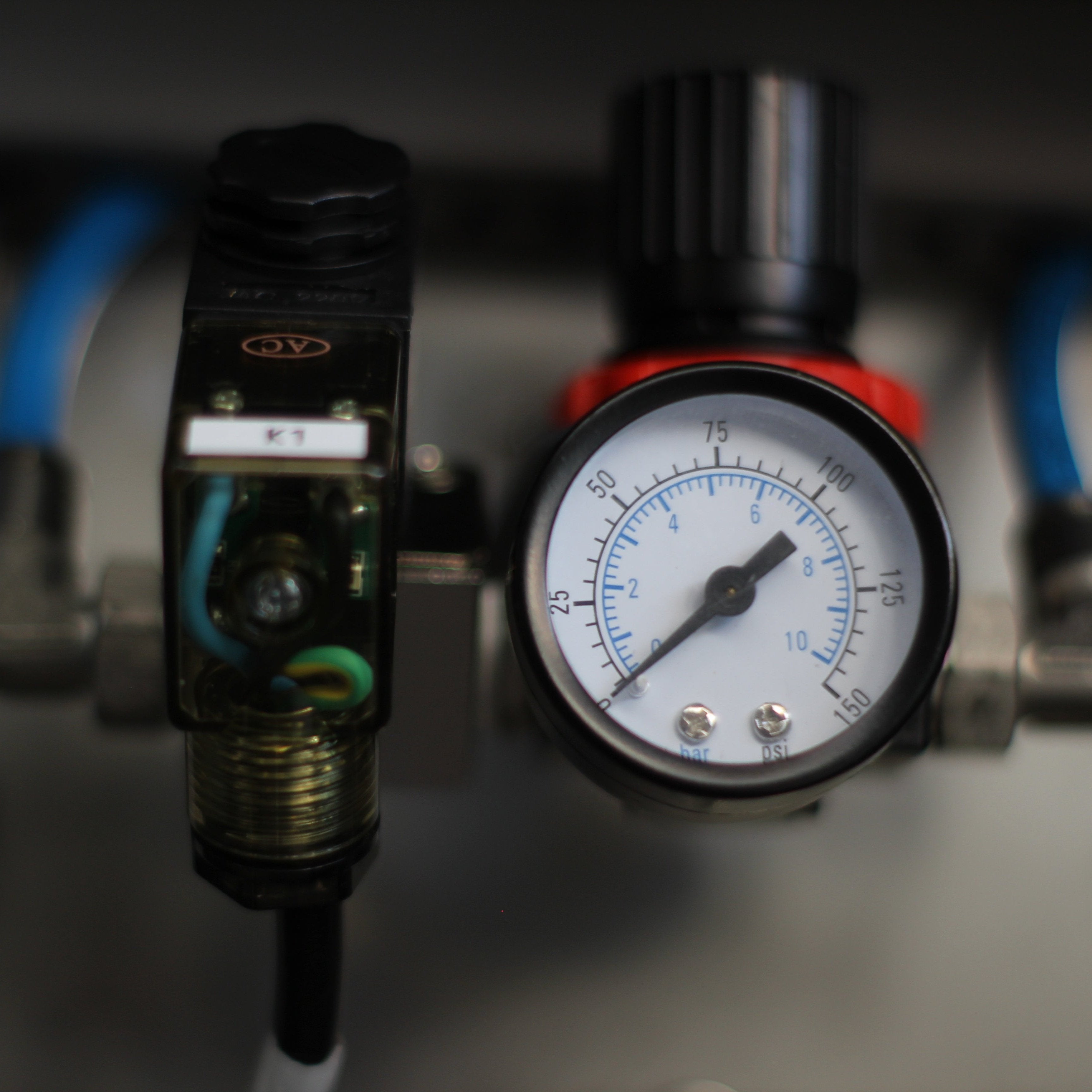

COMPRESSED AIR PRESSURE (FOR NEBULIZATION)
- Maximum Air Pressure: 30 psi (only on versions with compressed air nebulization)
CERTIFICATIONS AND STANDARDS
- Certification: Regulatory Standard NR12 (Compliance with safety standards)
- Good Manufacturing Practices (GMP): Aligned with hygiene standards required by pharmaceutical and food industries
WARRANTY
- Warranty Period: 12 months (National product)
Download Center
Here you can quickly access and download essential documents for your equipment. Choose the desired content below:
Didn't find what you needed? If you need other technical documents, contact our engineering team via WhatsApp.
Trusted by market leaders worldwide
Adaptable Performance to Your Needs
Customizable Hygiene
The SC-05 stands out for its flexibility in cleaning everything from heavy dirt, such as oil, grease, and lubricants, to more delicate needs, such as sanitizing mist to eliminate only bacteria.
The equipment can be adjusted for different conditions, with options for intense brushing to remove tougher residues or gentle misting for cleanings that require less impact. All this combined with parameter settings for brush rotation time, spray time, and self-rinse frequency, optimizing operation according to the environment.
Robust and Practical Construction
Modular Design

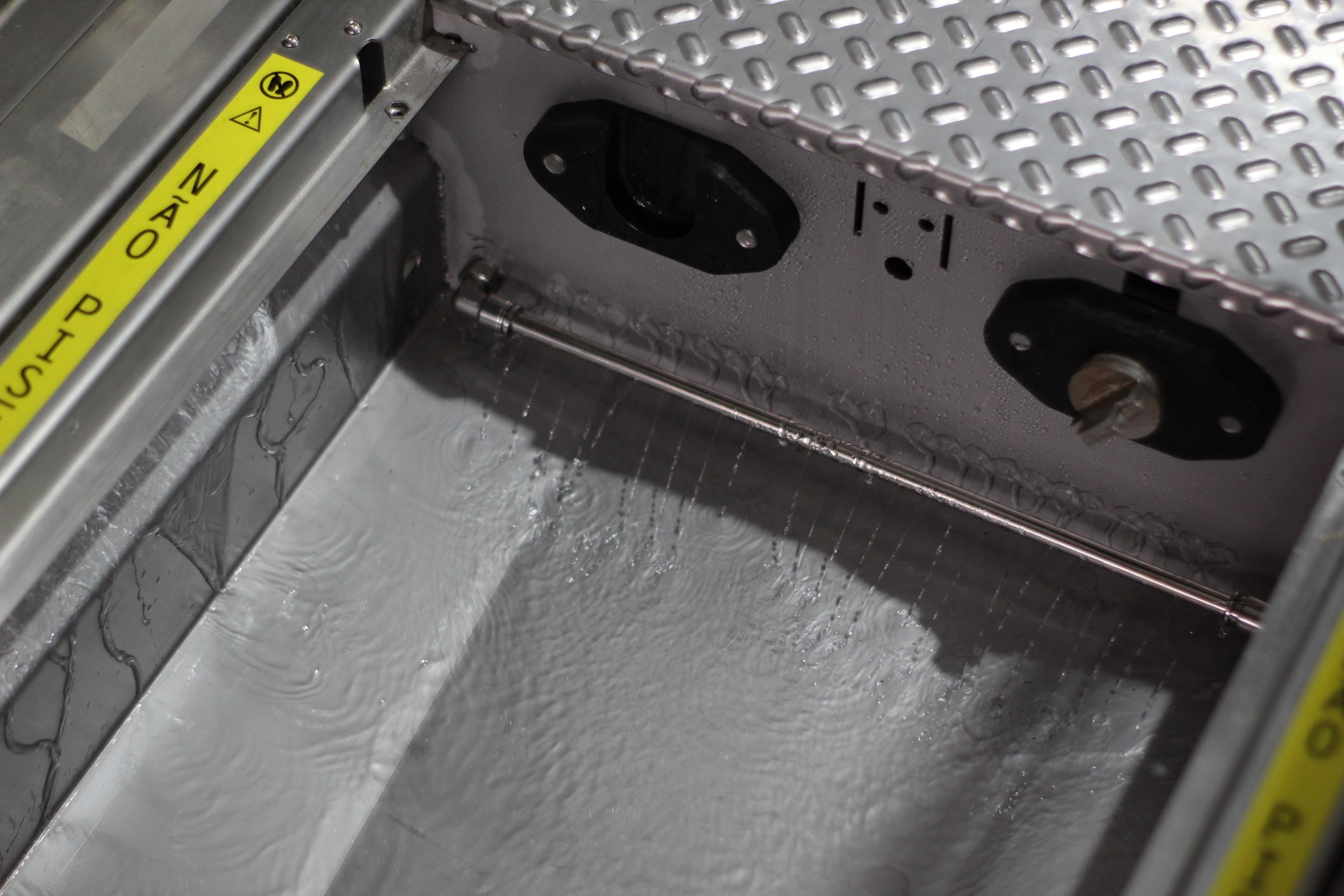

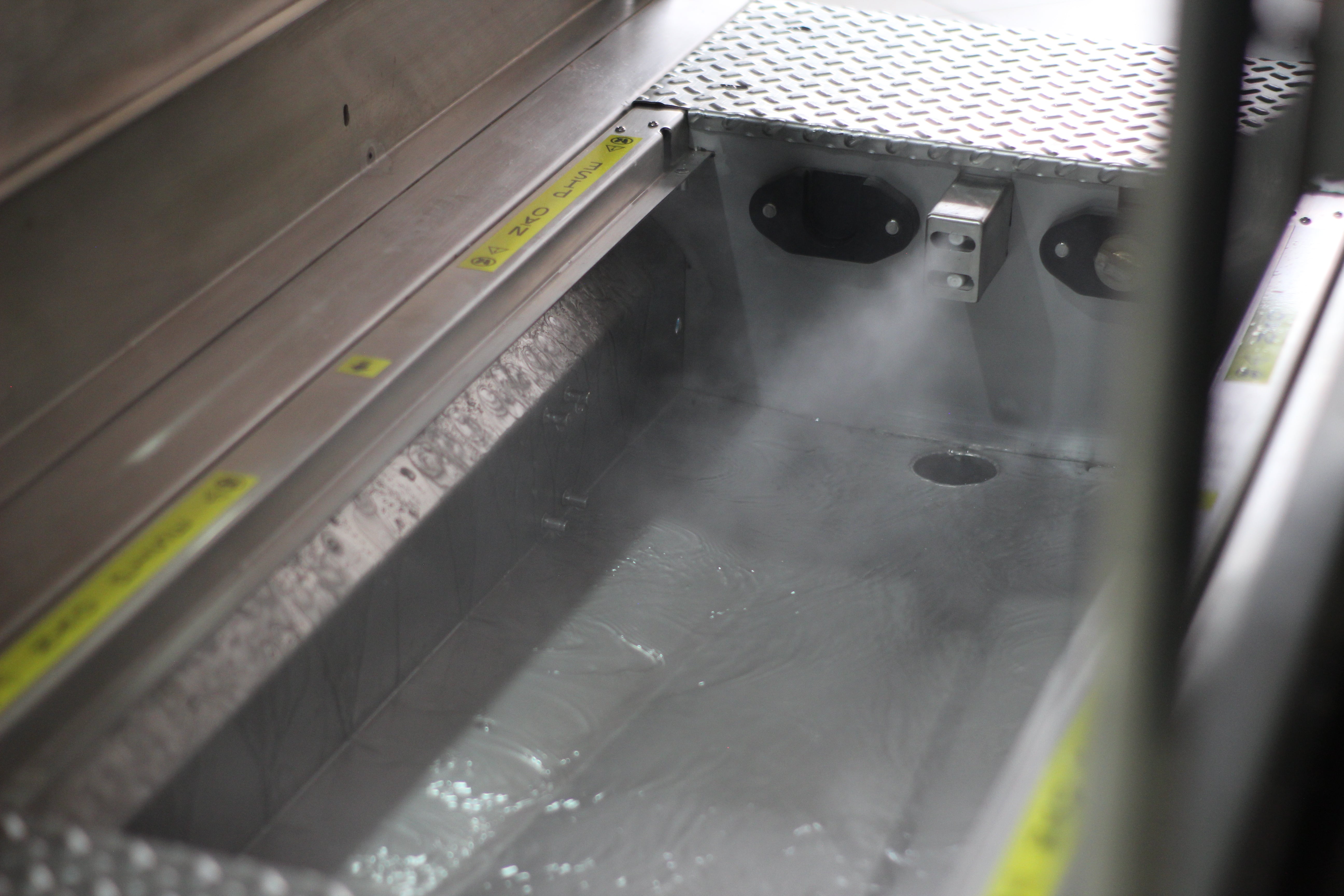

The SC-05 is manufactured in AISI 304 stainless steel, providing high resistance to corrosion and durability in harsh industrial environments. Its modular design allows quick brush replacement and easy adaptation of the equipment to different operating conditions. In addition, the self-rinse option (available in specific versions) ensures the brush compartment remains clean automatically, without frequent maintenance stops.
Durability and Customization
Made to Last and Adapt
With high-durability brushes and the possibility of configuring the equipment with front or side drawers, the SC-05 can be adjusted to suit your environment and workflow. This level of customization allows the SC-05 to be used in any sector, offering a solution that integrates perfectly into your company’s routine.
If you want to customize the equipment for the specific needs of your business, click the "request your quote" button and configure your SC-05 right now.
standards met
We help your company comply with HACCP, preventing contamination and standardizing sanitization.
The automation and sanitary control of our products contribute to the safety required by FSSC 22000.
Our solutions help ensure compliance with ISO/22000, guaranteeing hygiene and food safety.

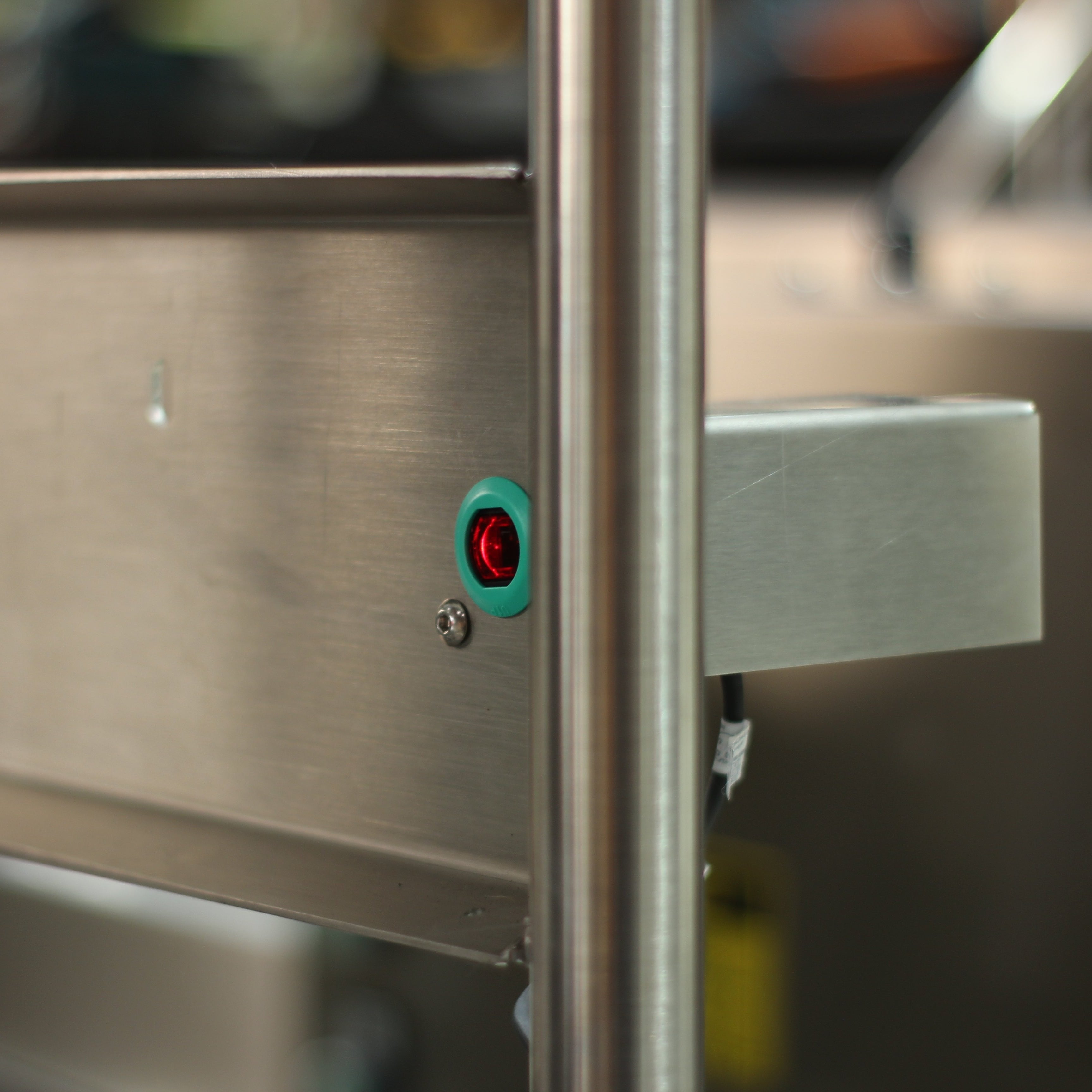

Activation by Presence Sensors
Automatic Operation
The SC-05 offers full automation of the hygiene process, automatically activating through presence sensors as soon as the user steps onto the platform. This contactless system is ideal to ensure a high level of hygiene and streamline workflow in high-traffic areas such as food and pharmaceutical industries.
nosso produto, testado na
practical
Ready to integrate the SC-05 into your company?
Request Your Quote Now
Click the "Request Quote" button and tell us your specific needs. Our team will adjust the SC-05 to offer a personalized solution that meets your operation’s requirements with maximum efficiency and cost-effectiveness.
a little more about the
equipment benefits
⠀

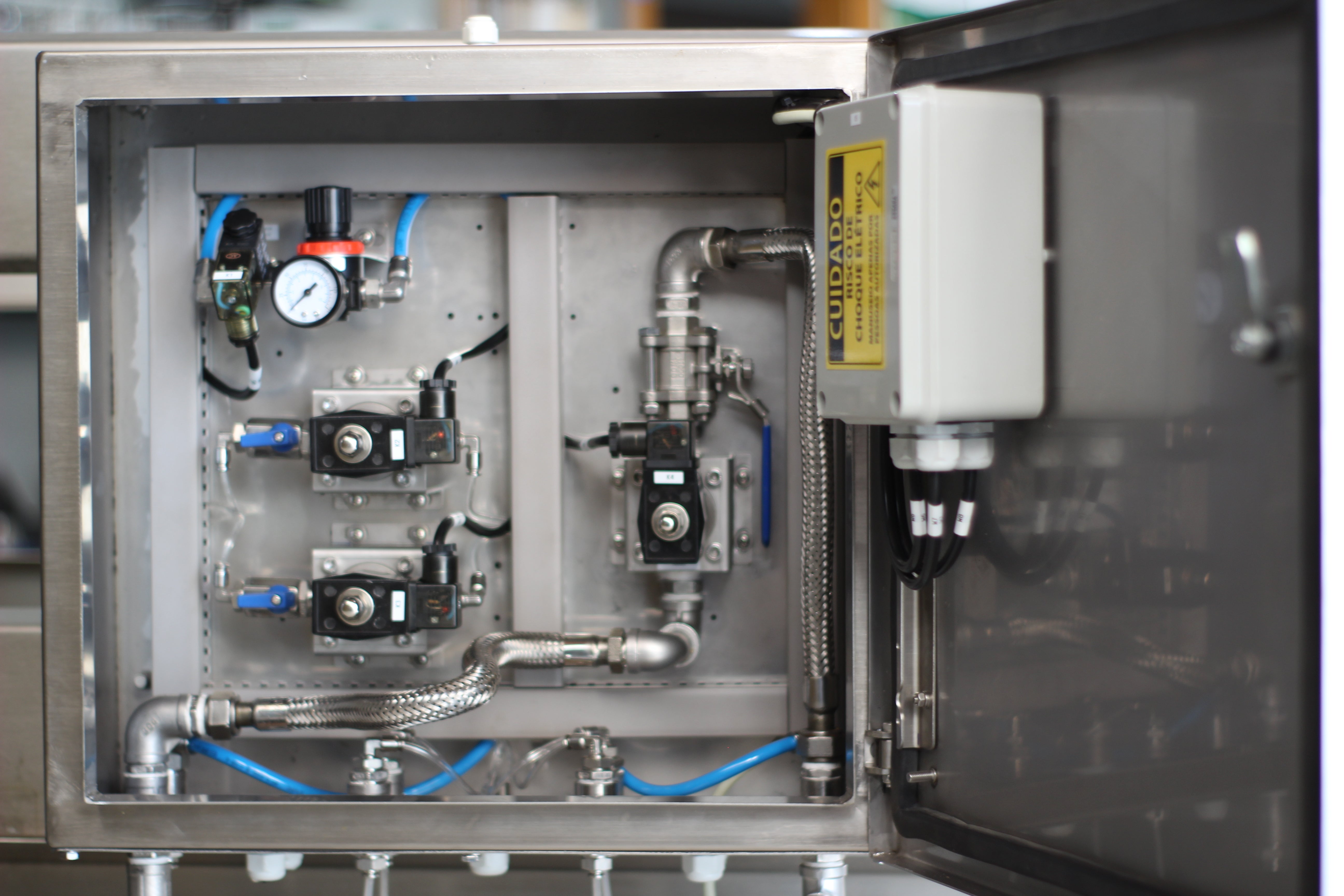

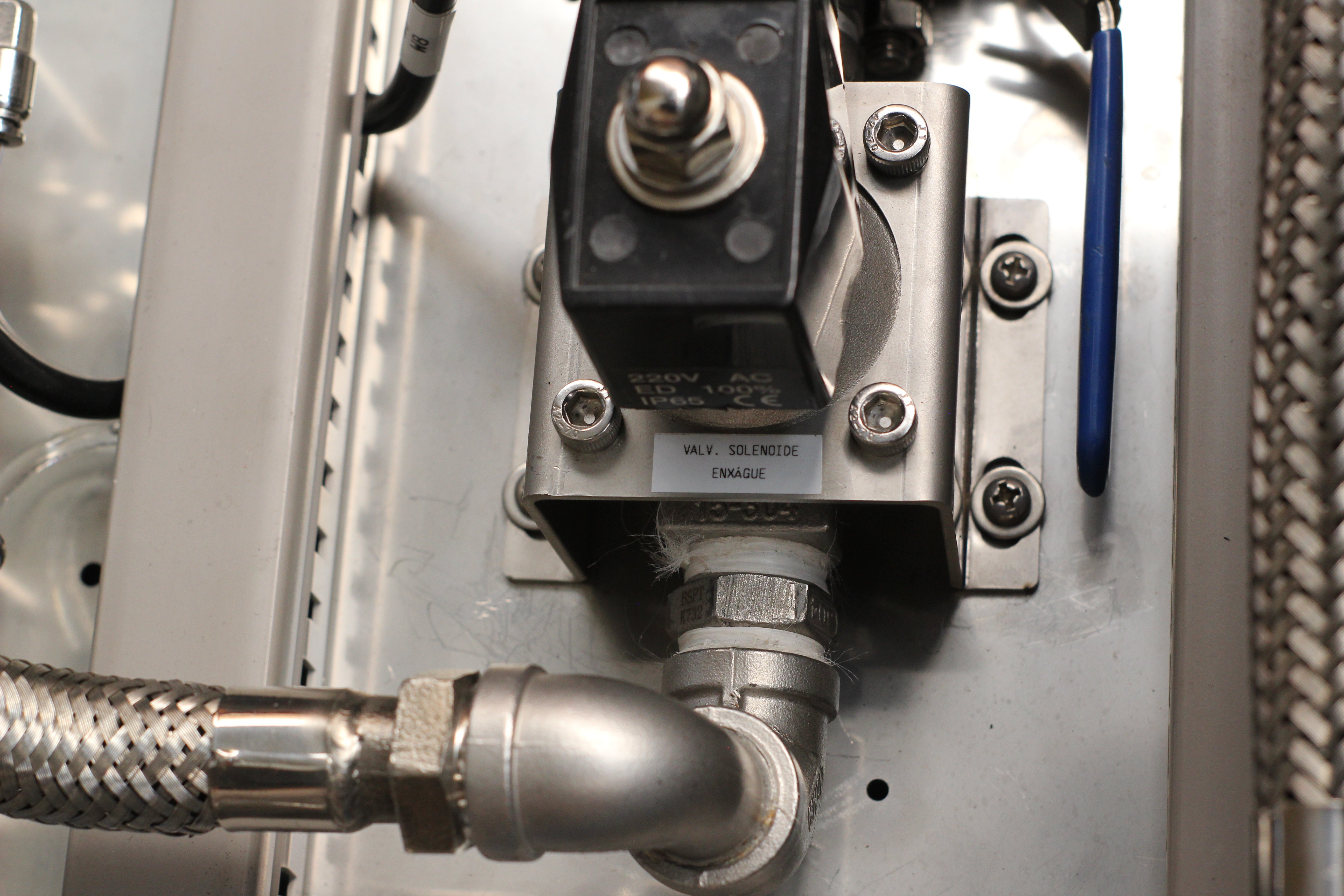

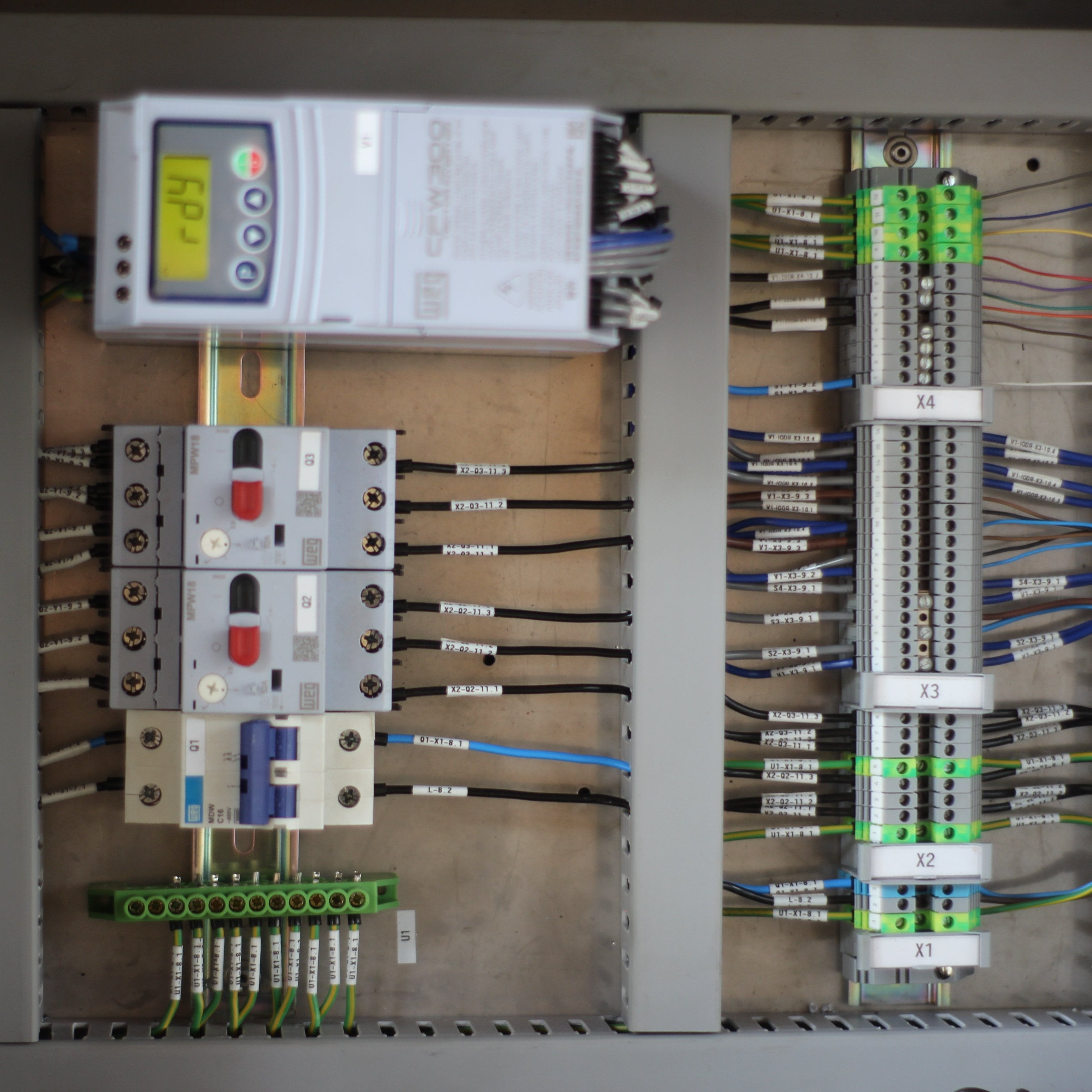

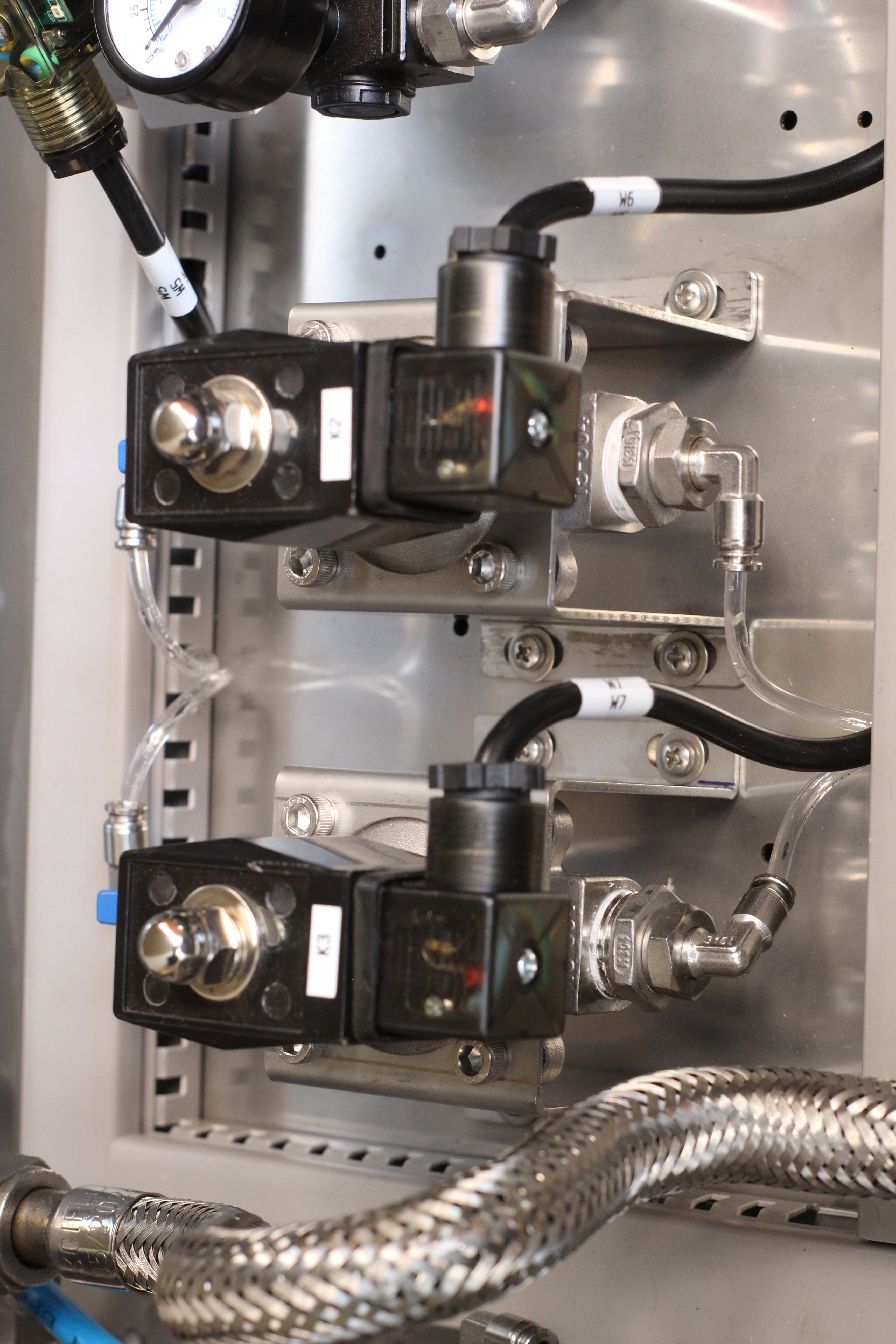

Electrical and Hydraulic Panels
Equipped with a standard electrical panel and an optional hydraulic one, the SC-05 adapts to different hygiene needs.
Compliance with Standards
The SC-05 complies with important standards such as NR12 and GMP, facilitating compliance in regulated sectors.
Energy Efficiency
Designed for energy efficiency, the SC-05 minimizes power consumption, reducing operational costs.
Questions
Here we have gathered the main questions about the product and their answers.
Usage and Applications
The SC-05 is recommended for food industries, pharmaceuticals, hospitals, laboratories, and other environments with high hygiene standards. It is ideal for places with high people flow, such as entrances and exits of production areas.
Yes, the SC-05 can be configured to use water and brushing, removing heavy dirt from shoe soles.
Yes, the SC-05 can be configured for waterless sanitization, using only sanitizer misting.
Yes, the SC-05 can be configured with an optional self-rinse system, which automatically cleans the brush compartment, making maintenance even easier.
Operation and Safety
Yes, the SC-05 has easily accessible emergency stops and its ergonomic design ensures user safety.
Yes, the SC-05 was designed to handle high traffic, with an average sanitization time of 6 seconds per person, ideal for busy areas.
No, the SC-05 is intuitive and easy to operate. It has presence sensors that automate the sanitization process as soon as the user steps onto the platform.
The SC-05 is equipped with presence sensors that automate the sanitization process. The equipment is automatically activated as soon as the user steps onto the platform, ensuring efficiency and a contactless experience.
Warranty and Support
The SC-05 comes with a 12-month warranty and specialized support for installation and maintenance. See how to ensure your equipment always works at maximum capacity and how to add new features after purchase.
The SC-05 has a 12-month warranty.
Yes, we offer full support for SC-05 maintenance. Contact our support team for more information.
Is it possible to add features to the equipment after purchase?
